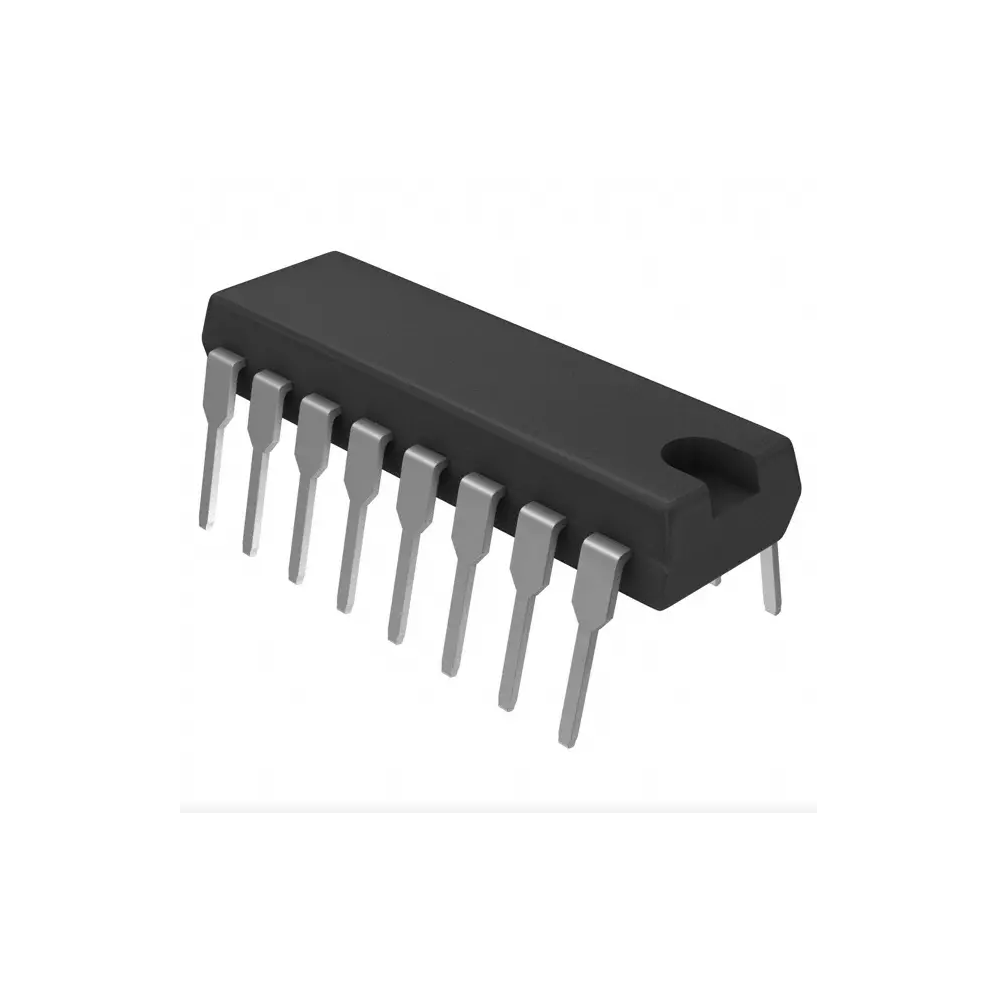

IC 7NPN Darlington 50V 500mA ULN2003A
Web N°: 25-2330
$1.95
IC 7NPN Darlington 50V 500mA ULN2003A
Web N°: 25-2330
$1.95
Description
- Transistor Type 7 NPN Darlington
- Current - Collector (Ic) (Max) 500mA
- Voltage - Collector Emitter Breakdown (Max) 50V
- Vce Saturation (Max) @ Ib, Ic 1.6V @ 500µA, 350mA
- Current - Collector Cutoff (Max) 50µA
- DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 350mA, 2V
- Power - Max -
- Frequency - Transition -
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Through Hole
- Package / Case 16-DIP (0.300", 7.62mm)
- Supplier Device Package 16-DIP
