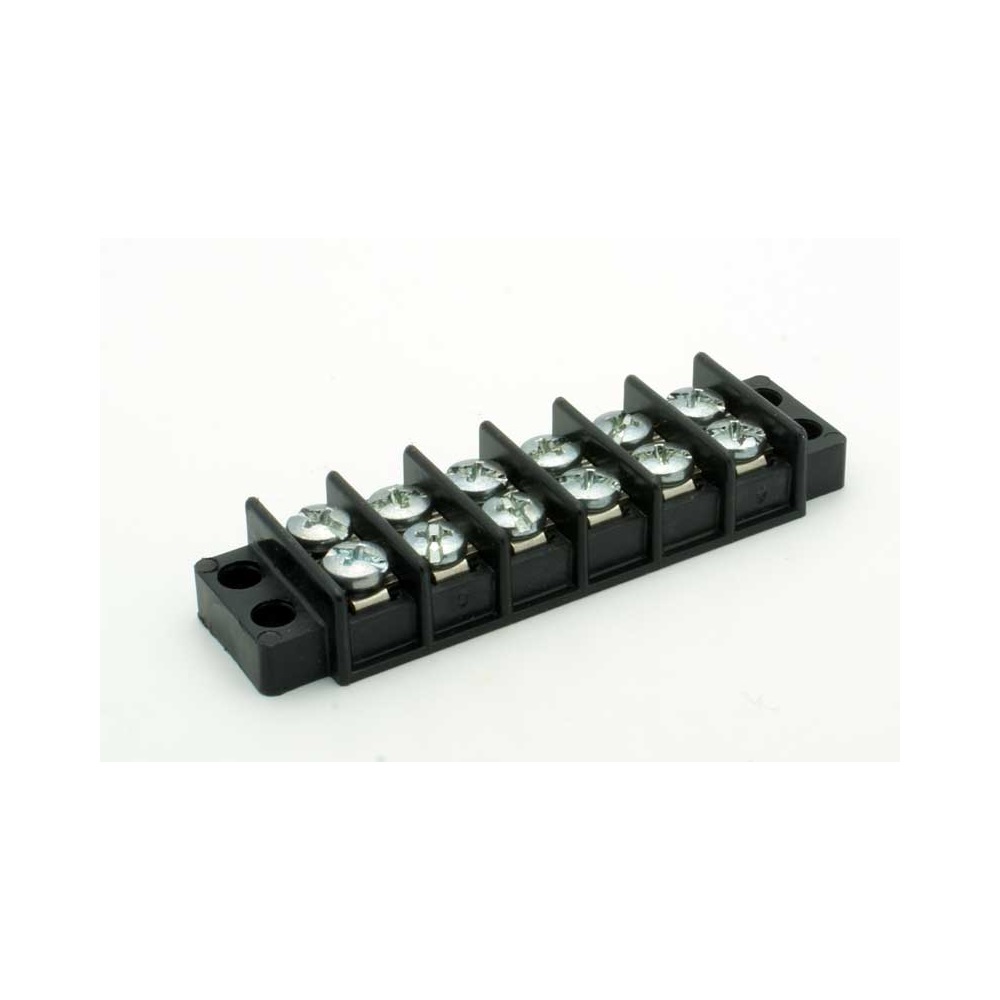

6 Position Terminal Strip 30A
Web N°: 26-1630
$4.95
6 Position Terminal Strip 30A

6 Position Terminal Strip 30A

Web N°: 26-1630
$4.95

Quantity available : 10

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Rating: 30A, 300V
  • Center Spacing: .375" (3/8")
  • Wire Range: 14AWG - 22AWG
  • Screw Size: #6-32 Phillips / Slot
  • Distance Between Barriers: .30"
  • Breakdown Voltage: 3600V
  • Terminal Contacts: Tin over Brass, Zinc Plated Screws


Overall Dimensions: 3" L x .75" W x .375" H
