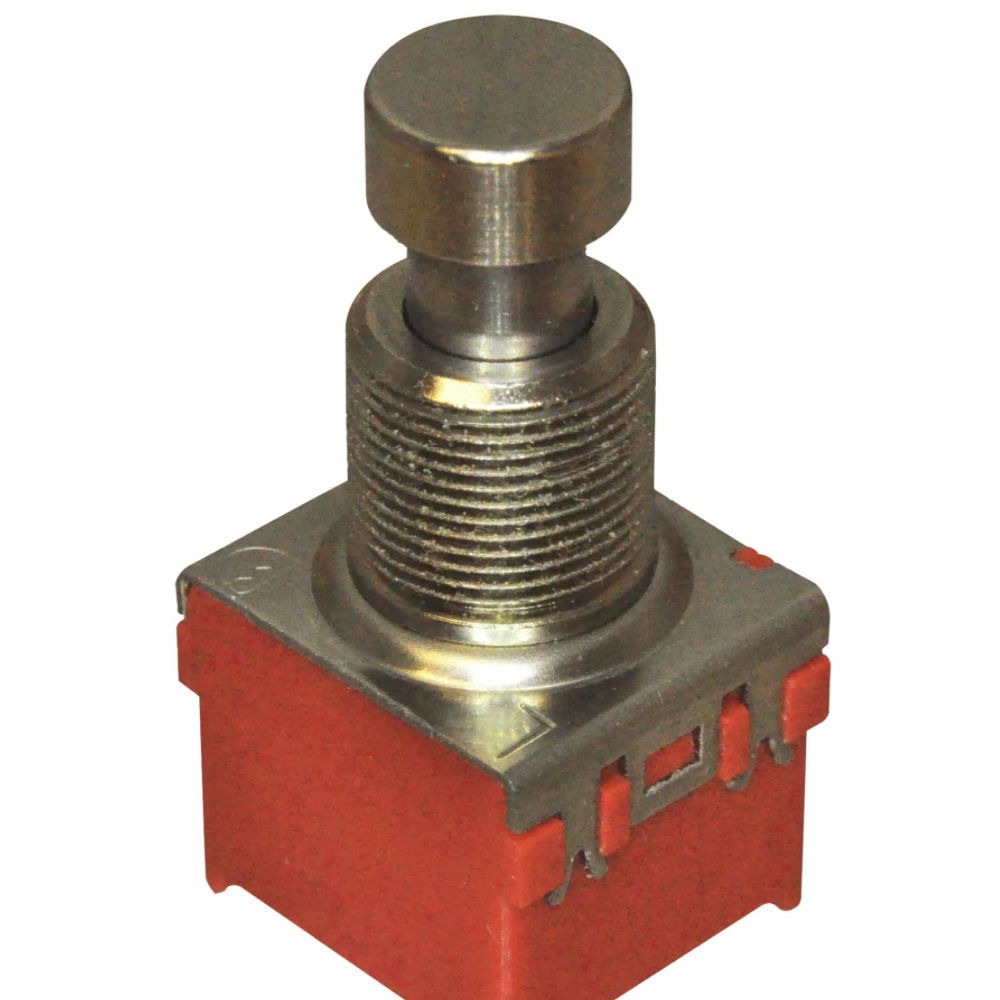

Momentary Push Switch (On)-Off 1A DPDT
Web N°: 25-2645
$9.95
Momentary Push Switch (On)-Off 1A DPDT
Out of stock

Momentary Push Switch (On)-Off 1A DPDT

Web N°: 25-2645
$9.95

This product is out of stock.


Description

  • Contact rating is 1A at 9VDC
  • Electrical life is 30,000cycles
  • Contact resistance is 50mohm initial
  • Insulation resistance is 100Mohm at 500VDC
  • Dielectric strength is 1000V RMS
  • Operating temperature range from -10°C to 70°C
  • Maximum panel thickness is 8mm
  • 10mm diameter actuator, 11.5 high bushing
  • Solder lug terminal
  • Silver contact material and epoxy sealing
