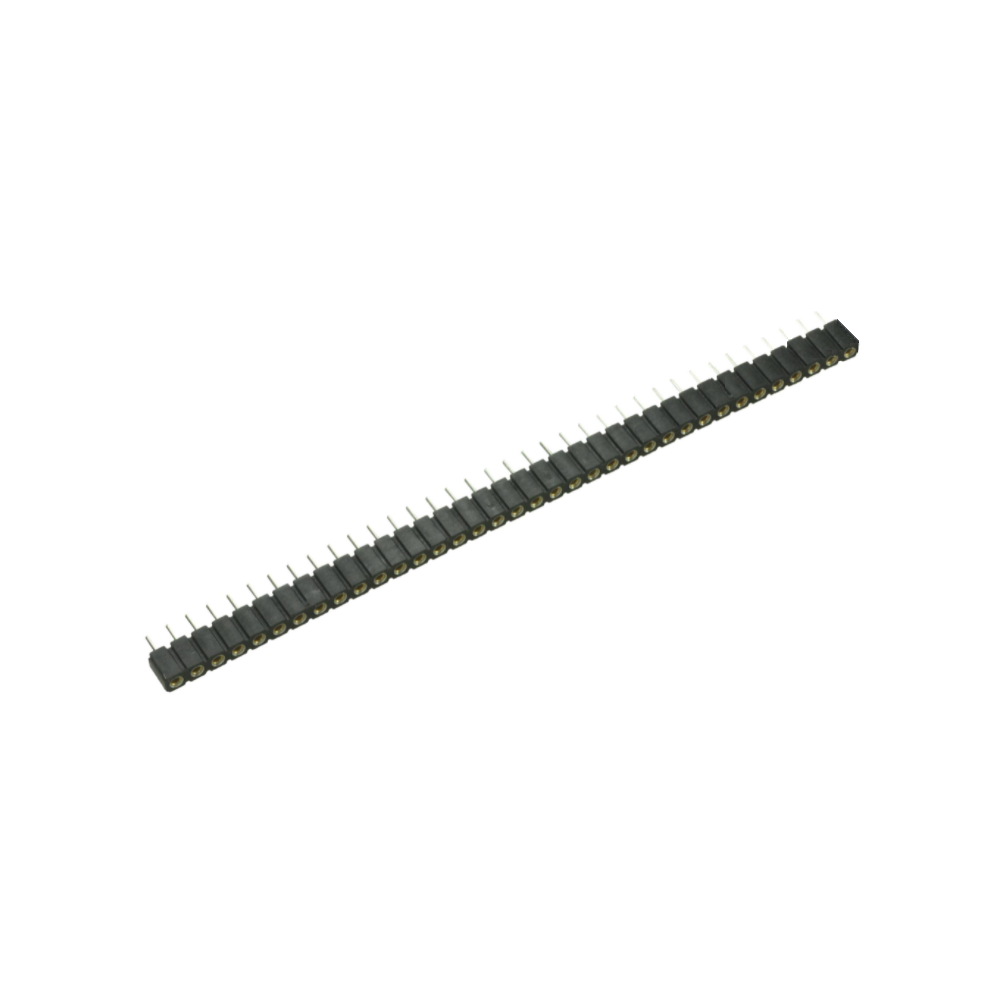

PCB Receptacle 2.54mm Single Row 36 Contacts
Web N°: 25-2936
$6.95
PCB Receptacle 2.54mm Single Row 36 Contacts
Web N°: 25-2936
$6.95
Description
A 36-pin single row Interconnect Socket with standard solder tail socket accepts Ø0.25-inch to 0.37-inch leads. 93 plating code with 200µinch tin/lead over 100µinch nickel shell plating. Gold plated beryllium copper contacts. PCT polyester insulator.
- 1000 Cycles mechanical life
- -55 to 125°C Operating temperature range
- 10mO Maximum resistance
Details and Specifications
- Connector Systems: Board-to-Board
- Pitch Spacing: 2.54mm
- No. of Contacts: 36 Contacts
- Product Range: 801 Series
- Contact Termination Type: Through Hole
- Connector Mounting: Through Hole Mount
- No. of Rows: 1Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Beryllium Copper
