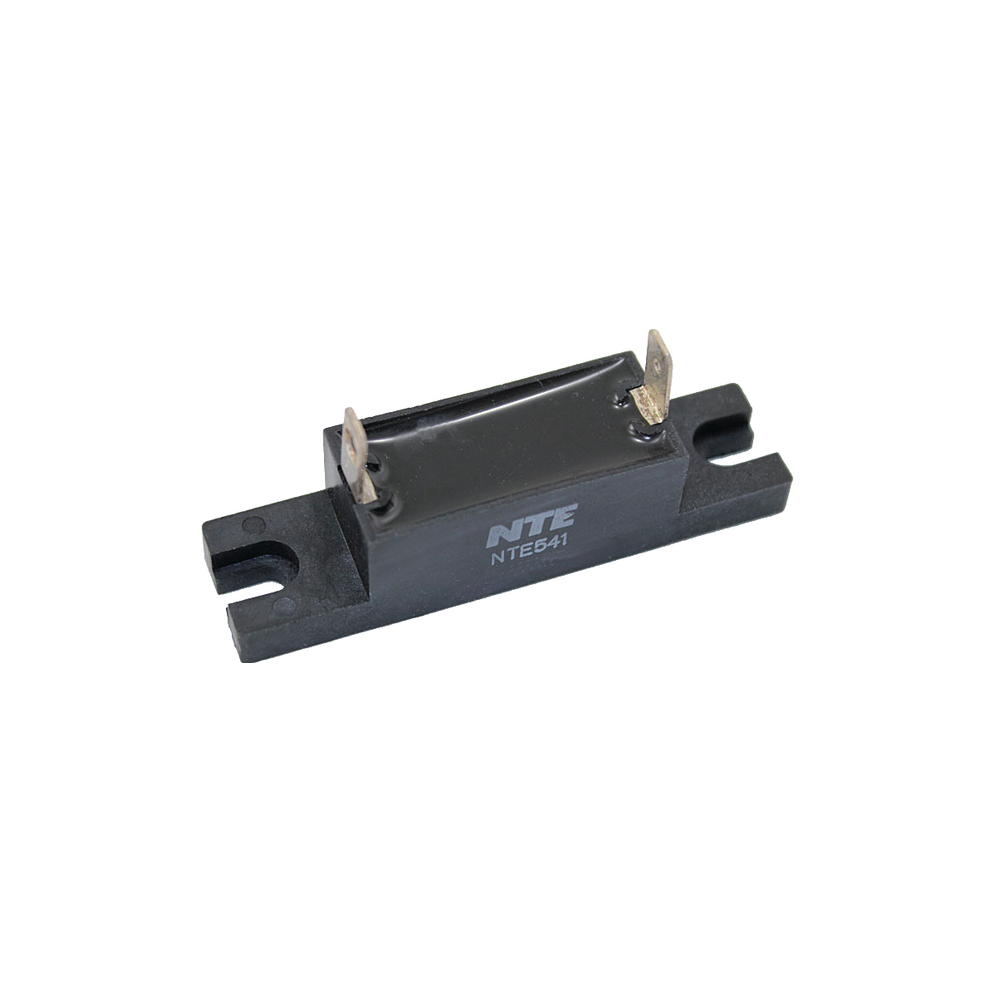

Diode for microwave 12kV 1A MAX
Web N°: 25-2977
$12.95
Diode for microwave 12kV 1A MAX
Web N°: 25-2977
$12.95
Description
- Low Leakage
- Isolated Case
- Surge Overload Rating: 50A Peak
- Low Forward Voltage Drop
- Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified.)
- Maximum Peak Reverse Voltage (IR = 0.5µA), VRRM: 12kV
- Maximum Peak Working Reverse Voltage (IR = 0.5µA), VRWM: 12kV
- Maximum Non-Repetitive Peak Reverse Voltage (IR = 0.5µA), VRSM: 13.2kV
- Maximum Average Forward Current (50Hz, TA = +50°C), IO: 1.0A
- Peak Forward Surge Current (50Hz, 0.01S), IFM(Surge): 50A
- Maximum Reverse Breakdown Voltage (IF = 1.0A), VF: 18V
- Maximum Junction Temperature, TJ: +120°C
- Storage Temperature Range, Tstg: -40° to +120°C
- Maximum DC Reverse Current (at Rated Blocking Voltage), IR:
TA = +25°C: 5µA
TA = +80°C: 50µA
