ProtoBoard-2H-3U 2-Hole Strips 3.9" x 6.3" x 1/16"
Web N°: 25-3013
$13.95
ProtoBoard-2H-3U 2-Hole Strips 3.9" x 6.3" x 1/16"
Web N°: 25-3013
$13.95
Description

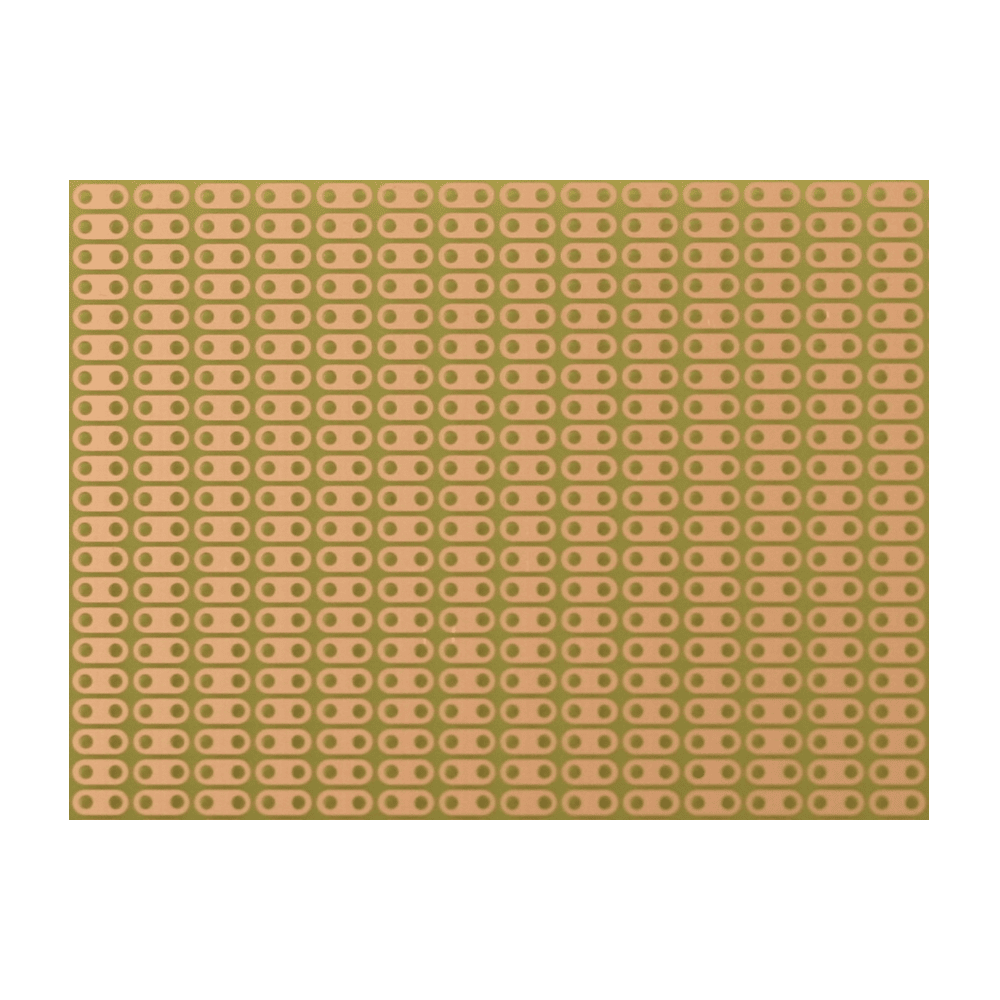

- Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
- Single-sided high-quality FR4 glass-epoxy circuit board.
- 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
- 38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers.
- Standard single height (3U) Eurocard/VME size: 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm).
Details and Specifications

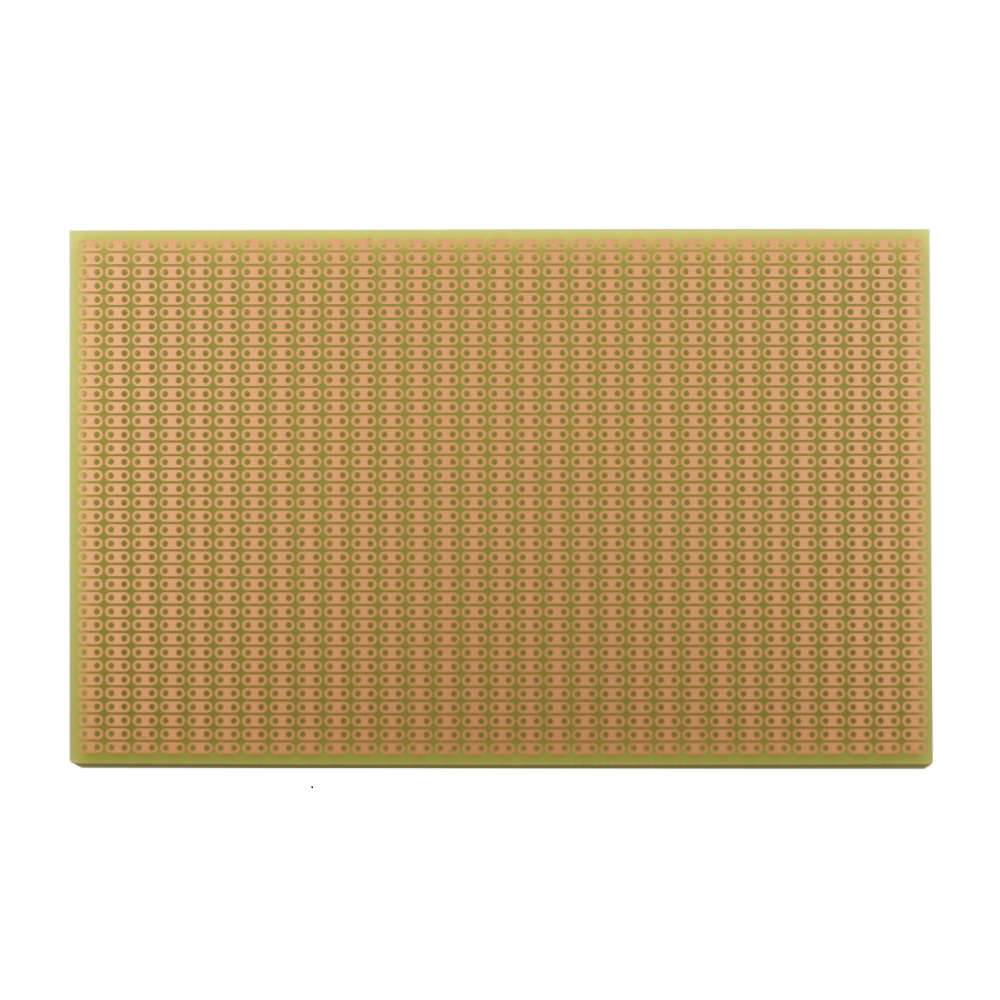

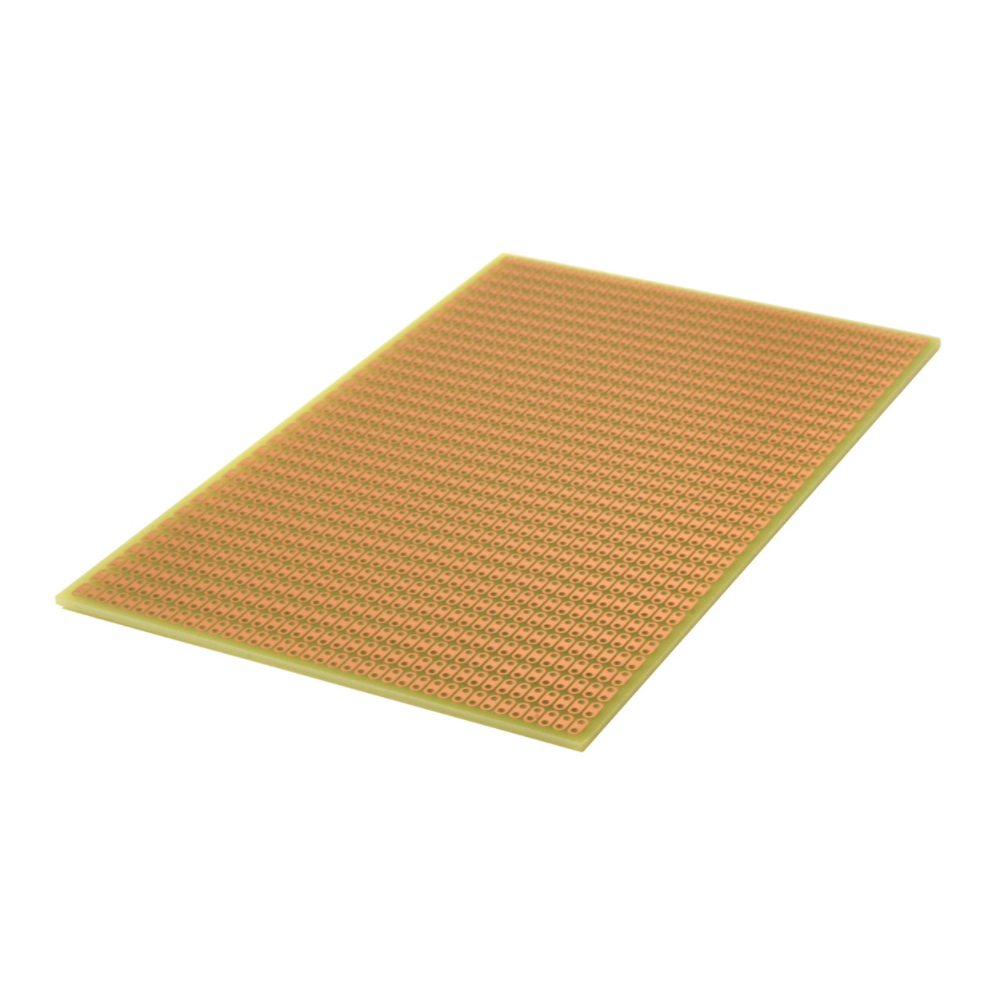

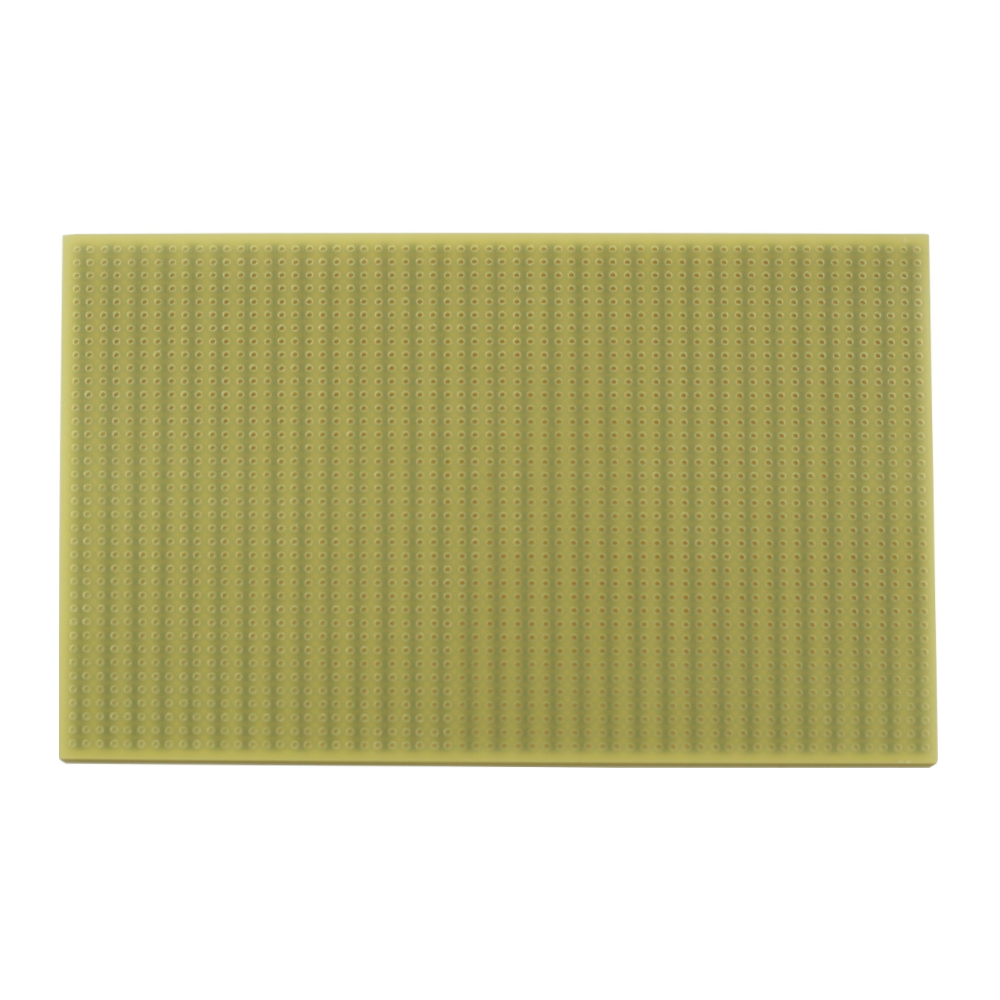

The ProtoBoard-2H-3U prototyping circuit board has 2-hole pre-cut strips. The convenient 2-hole ProtoBoard pattern provides an easy way to connect parts while maximizing usable board area. ProtoBoard-2H is a good pattern for compact circuit layouts, and it is often more convenient than pad-per-hole patterns. It is good for analog use as well as digital since many discrete components can be located closely. It is a single-sided board with holes on 0.1” centers.
