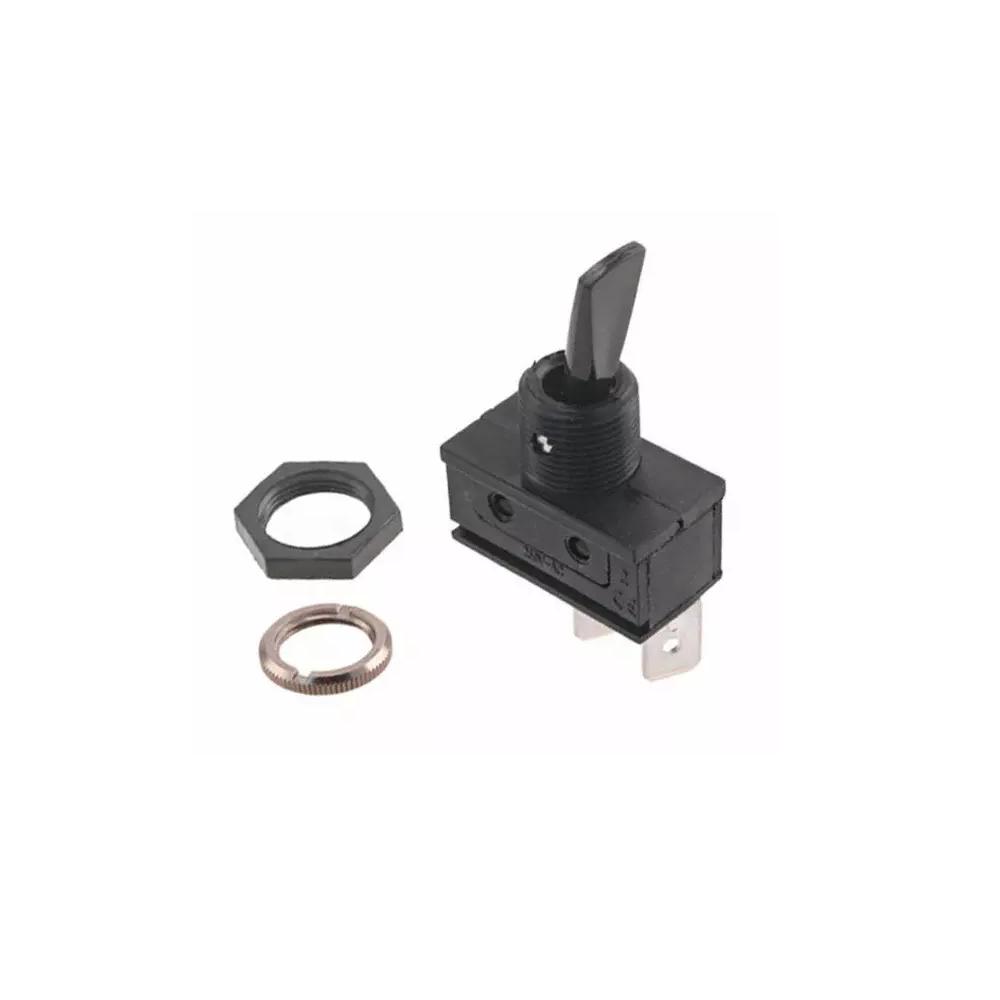

Standard Size SPST Paddle Handle Toggle Switch ON/-/OFF
Web N°: 25-0187
$15.95
Standard Size SPST Paddle Handle Toggle Switch ON/-/OFF
Web N°: 25-0187
$15.95
Description
Circuit SPST
Switch Function On-Off
Current Rating 20A (AC)
Voltage Rating - AC 250V
Voltage Rating - DC -
Actuator Type Flatted
Actuator Length 16.40mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Mounting Type Panel Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Circular - 12.70mm Dia
Bushing Thread 15/32-32
Ingress Protection -
Features -
Actuator Material Polyamide (PA), Nylon
