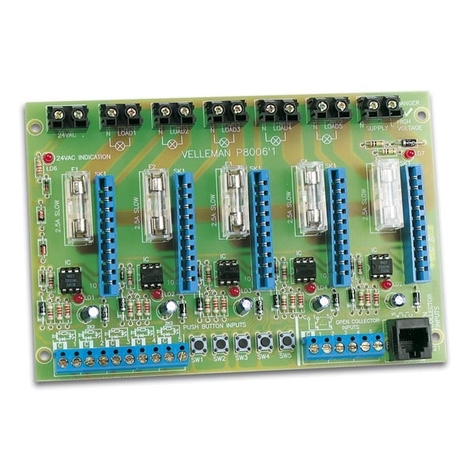

Domotica Light System - Busprint
Web N°: 37-0108
$39.95 Save $23.00
$39.95 Save $23.00
$39.95 Save $23.00
$39.95 Save $23.00
$39.95 Save $23.00
Description
Create your own domestic modular light control system. Bus system holds up to five plug-in units. Optically insulated push-button inputs. Can be controlled with open collector circuits. Local control push-buttons included. LED power and mains indicator. LED operation indicator for each channel. Low-voltage (24VAC) control circuit for extra safety. Each plug-in slot is fused. Includes 10 LEDs for push-button illumination.
Details and Specifications
- Five separated channels.
- Maximum output: 2.5A per channel (fuse protected).
- Push button control current: 150mA.
- Open collector control current: 35mA.
- DC Power supply: 24V AC / 300mA.
- Supply voltage for modules: 110V to 240V AC.
- PCB dimensions: 4.2 x 6.3 x 2.8".
