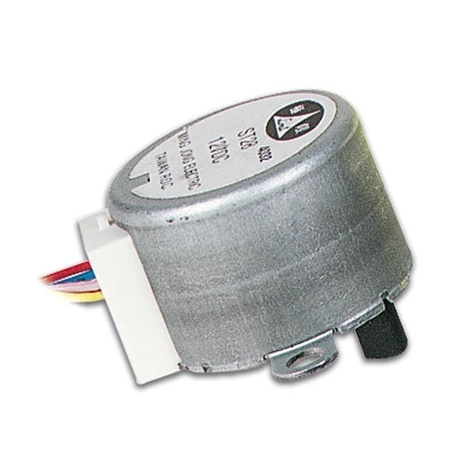

12VDC Stepper Motor 32mA
Web N°: 25-0473
$12.95
12VDC Stepper Motor 32mA
Web N°: 25-0473
$12.95
Description
Applications: office machines, automatic machines, split air conditioners.
Details and Specifications
- Resistance: 280 ohms.
- Rated voltage: 12V DC.
- Current: 32mA.
- Impedance: 380ohm.
- Phase: 4.
- Step angle / step: 5.625° / 64.
- Reduction ratio: 1/64.
- Detent torque: 4.86oz-in.
- Pull-in torque: 4.17oz-in.
- Max. starting pulse rate: 550pps.
- Max. slewing pulse rate: 90pps.
- Temperature range: 77°F.
- Noise: 40dB.
- Cable: 420mm AWG 1095#28.
- Insulation strength: AC 600V - 1 sec cut-off current: 10mA.
