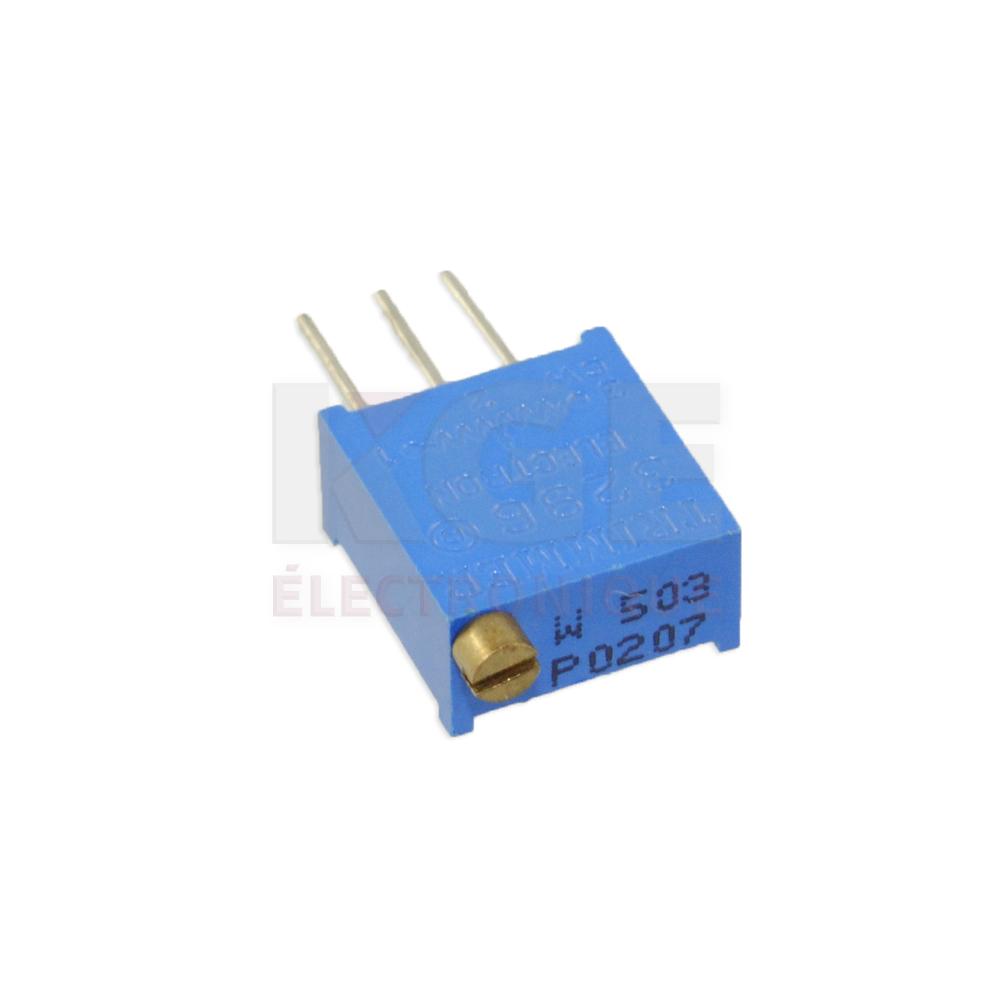

20 Turn 50K Ohms Vertical Mount Trimpot (Trimmer)
Web N°: 25-0075
$1.50
20 Turn 50K Ohms Vertical Mount Trimpot (Trimmer)
Web N°: 25-0075
$1.50
Description
These precision made cermet element allows almost infinite resolution. With the multi-turn function the accuracy is \> .01% variance. These cermet elements provide superior resistance stability and excellent voltage setting ability. These potentiometers are more stable and cost less than wirewound, carbon, or metal film competitors.
Details and Specifications
- Turns: 20.
- Element: Ceramic.
- Power: 0.5W.
- Size: 9mm X 9mm X 4.5mm.
- Lead Spacing: 2.54mm (.1”).
