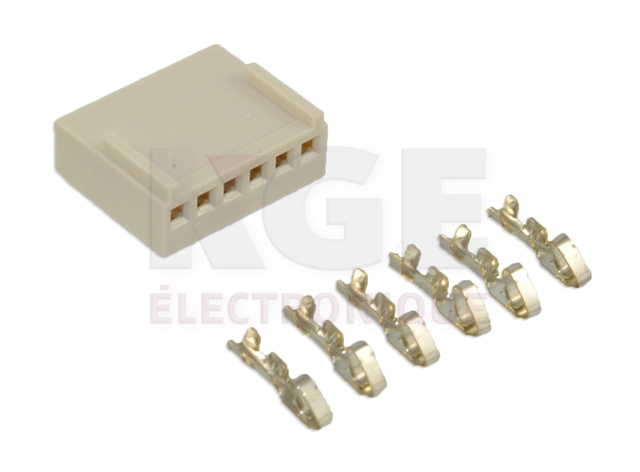

.100" 6 Position Crimp Type Locking Connector
Web N°: 25-0977
$0.70
.100" 6 Position Crimp Type Locking Connector
Web N°: 25-0977
$0.70
Details and Specifications
- Width: .622".
- Voltage Rating: 250V AC, DC.
- Current Rating: 5 A AC, DC.
- Withstand Voltage: 1000V AC/minute.
- Insulation Resistance: 1000m ohm Minute.
- Temperature Range: -25ºC - +85ºC.
- Thickness: .063” (1.6mm).
- Contact Resistance: Initial Value : 10 ohms Max / After environmental testing : 20m ohms max.
- Material: Post - Brass, Tin Plate / Base - Nylon 66, UL 94V-2.
