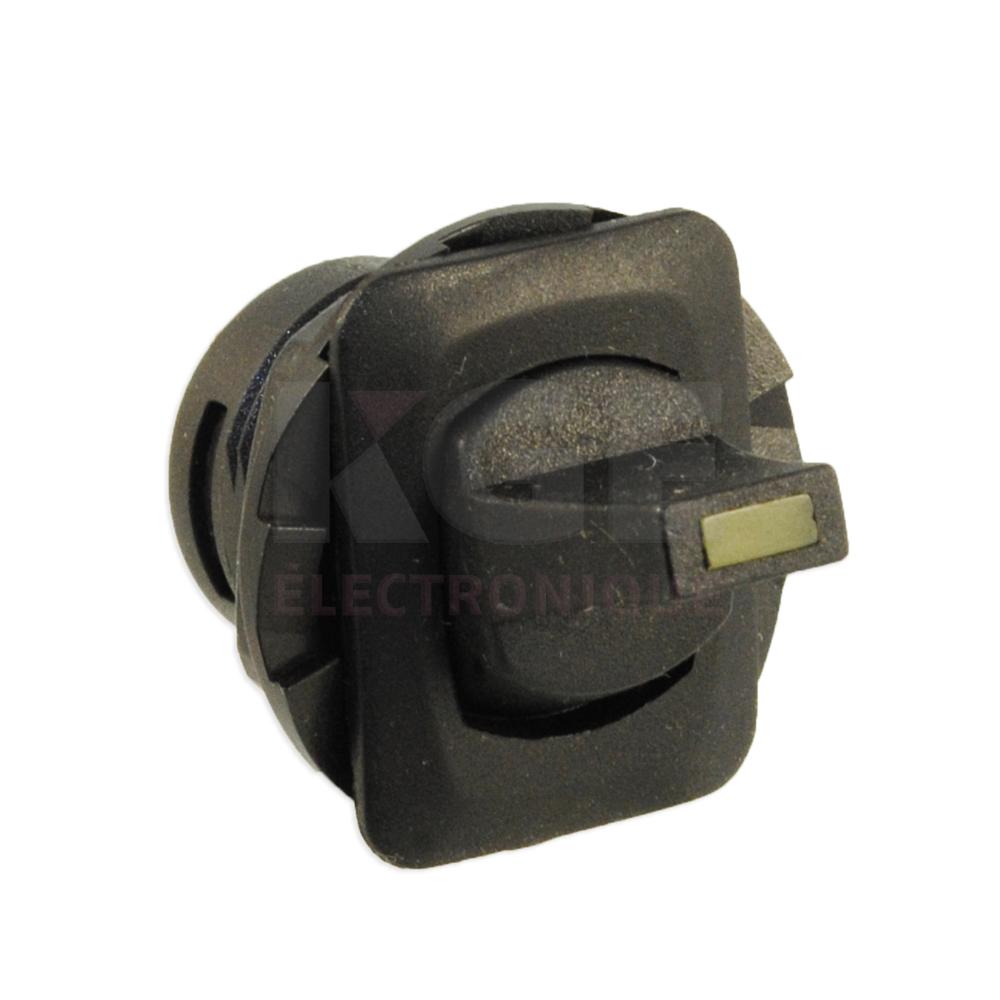

Amber LED Lamp SPDT Round Paddle Lever Toggle Switch On/On
Web N°: 25-0580
$6.95
Amber LED Lamp SPDT Round Paddle Lever Toggle Switch On/On
Web N°: 25-0580
$6.95
Details and Specifications
- Current Rating: 6A 250VAC, 10A 125VAC.
- Initial Contact Resistance:
- Insulation Resistance: >100Meg Ohms.
- Dielectric Strength (Open Contacts): >1500V for 1 minute.
- Contact Material: Silver Plated Brass.
- Terminal Material: Copper Alloy.
- Body Material: Nylon (UL 94V-2).
- Actuator & Bezel: Nylon (UL 94V-2).
- Terminal Type: Solder Connection.
- Mounting Hardware: M18 P1.0.
- Lamp Voltage: LED 2V* @20ma (*resistor needed for other voltages).
- LED indicator on top of lever.
