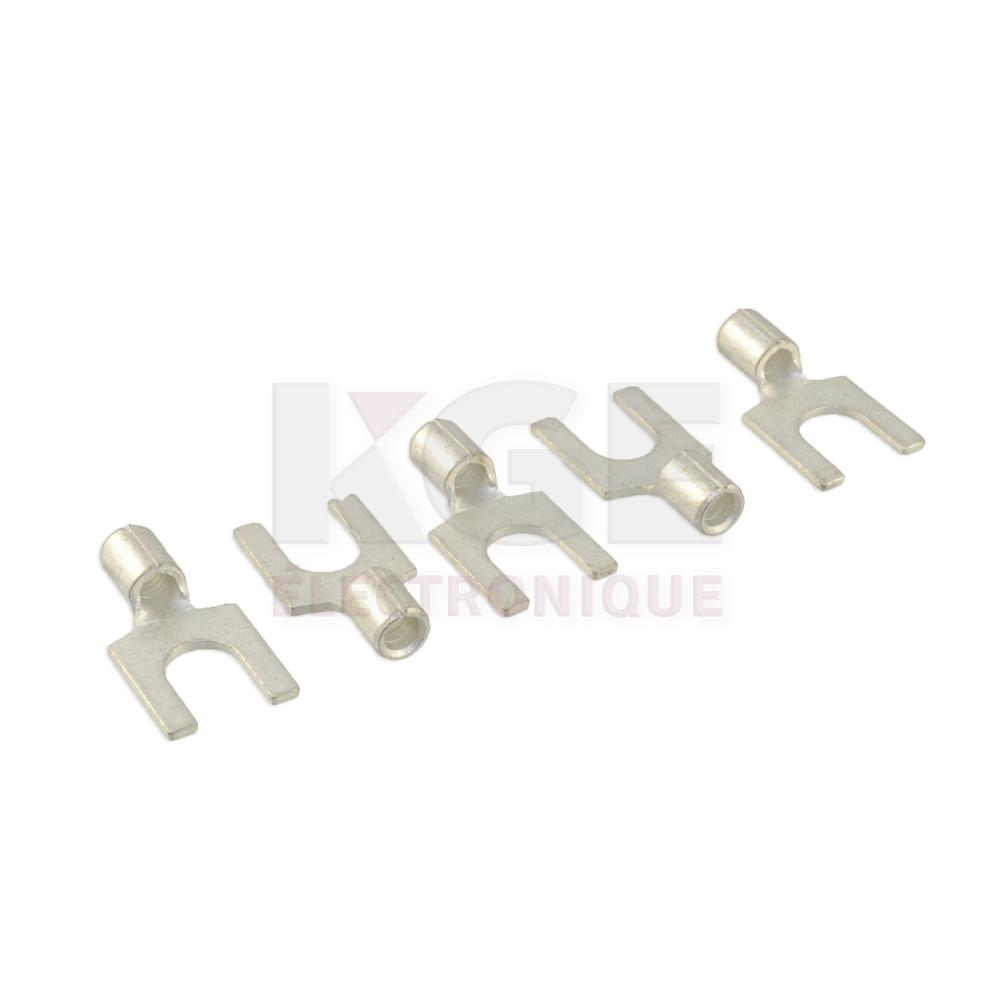

Panduit 12-10 Non-Insulated Fork Terminals - 5-Pack
Web N°: 26-0334
$1.95
Panduit 12-10 Non-Insulated Fork Terminals - 5-Pack
Web N°: 26-0334
$1.95
Description
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Maximum recommended operating temperature 302°F (150°C)
- UL and CSA rated up to 2000 V
- Stud size: 1/4"
- Length: 22.6 mm (0.89")
- Width: 12.7 mm (0.50")
- Clearance: 7.6 mm (0.30")
