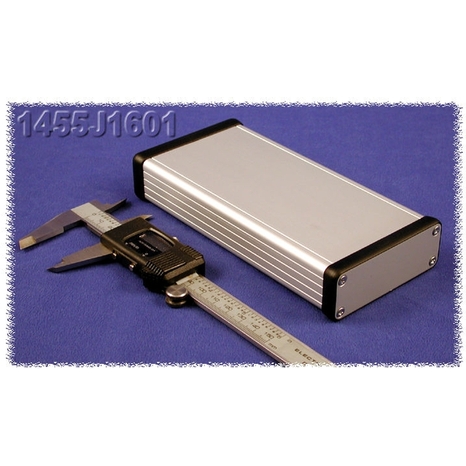

1455J1601 - Extruded Aluminum Enclosure with metal Panels - Grey

Description

• Designed to house P.C. boards or for equipment interfacing.
• Sized for standard Eurocards. P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
• Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).

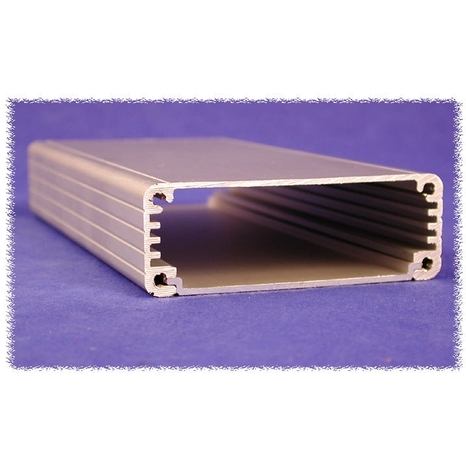

• Extruded body includes a slide removable "belly" plate
• Two aluminum end panels
• Two black ABS plastic bezels (your choice to install)
• Extruded, anodized aluminum body Includes all hardware
• end panel screws are #6 x 3/8" TTT
• thread rolling, steel screws with a #4 flat head phillips drive
• with zinc plate finish. Self adhesive rubber feet
• Dimensions: 6.3" L x 3.07" W x 1.06" H (160 x 78 x 27 mm)
