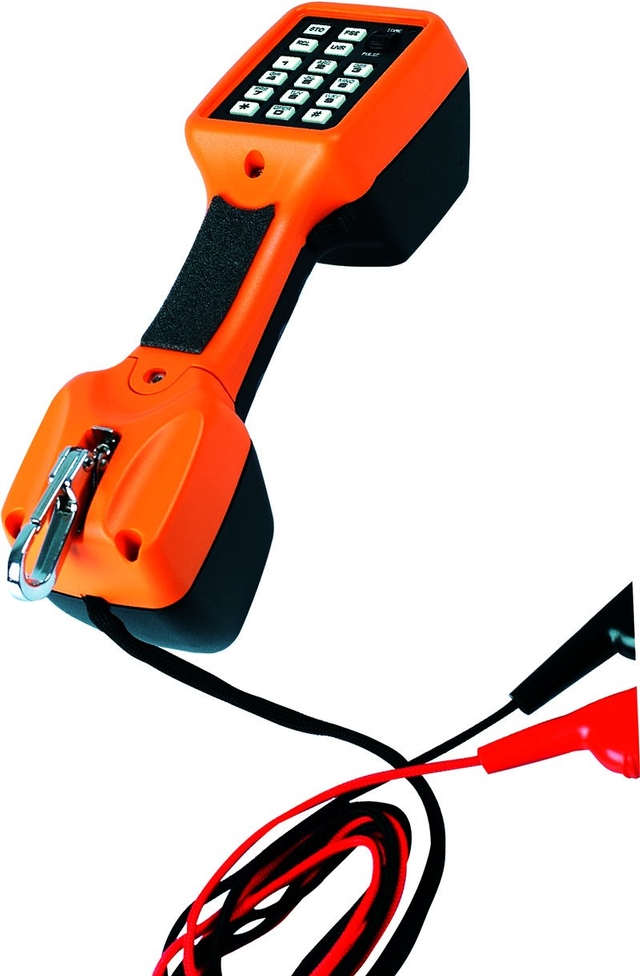

Butt Set

Description

Recognized as the new industry standard, it provides superior quality at an affordable price.

With its high impedance monitor for data safe operation, technicians can clip onto a line in Monitor mode without disrupting existing traffic.

Its unsurpassed protection standards and durability assure the butt set will keep working even in the toughest environments.

• New weatherproofing provides enhanced resistance to severe weather conditions
• Rests easily on shoulder
• Polarity LED indications
• Large multi-functional panel
• Angled bed of Nails
• Durable hanger
• Loop limit: 2 Kohms maximum at 48 VDC (nominal 20 mA minimum loop current)
• DC resistance (talk mode): 300 ohm typical
• Monitor impedance: 39kOhm nominal at 1 KHz
• Pulsing rate: 10pps+0.8pps
• Interdigit interval: 1000 ms typical
• Leakage during break: > 50 Kohm
• Tone frequency error: +/
  - 1.2% maximum
• Tone level: -8+/-2dBm combined (typical)
• High versus low tone difference: 4dB maximum
• Memory capacity: 12 memories plus last number redialing
• Digit capacity: 16 digits per memory
• PBX pause: 4 seconds
• Monitor amplifier power source: 9V transistor;
• provides 25 hours continuous use,
• typical Speaker levels: Low, medium, high
• Automatic power shut off: After 5 min. of no audio signal
• Speaker phone levels: Low, medium, high
• Power source: Shared line and battery power, 9V battery not included
• Dimensions (mm): 260 L x 70 W x 89 H
• Dimensions (inches): 10.2 L x 2.8 W x 3.5 H
• Weight (g): 560
• Operating temperature: 0 to 50 C
• Storing temperature: 40 to 66 C
• Altitude relative humidity: To 10,000 feet 5 to 95%
