50 Amp Type III Manual Reset Circuit Breakers
Web N°: 17-0015
$59.95

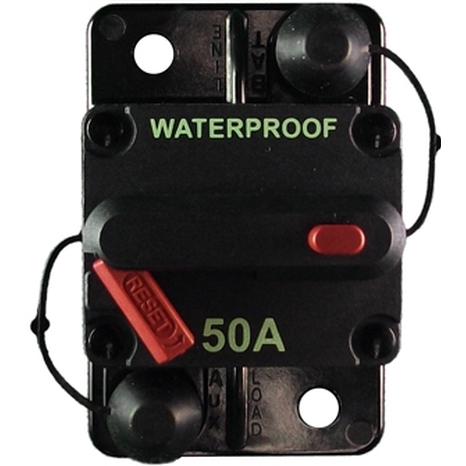

50 Amp Type III Manual Reset Circuit Breakers
Web N°: 17-0015
$59.95
Description
Circuit breaker will remain tripped (in the off position) until the lever is manually reset. Panel or surface mount. Typically used in auxilliary and accessory circuits-trucks, busses, RV's and marine applications. Others might include battery chargers and DC audio systems.
Details and Specifications
- Amp: 50A.
- Colour: Black.
- Flammability Rating: UL94-V0 (Housing).
- Interrupt Rating: 3000A @ 30V DC.
- Material: Thermoset Plastic.
- SAE Standard: J1625.
- Temperature Rating °C: Operating: -32 to 82, Storage: -34 to 149.
- Temperature Rating °F: Operating: -25 to 180, Storage: -29 to 300.
- Voltage: 32V DC.
