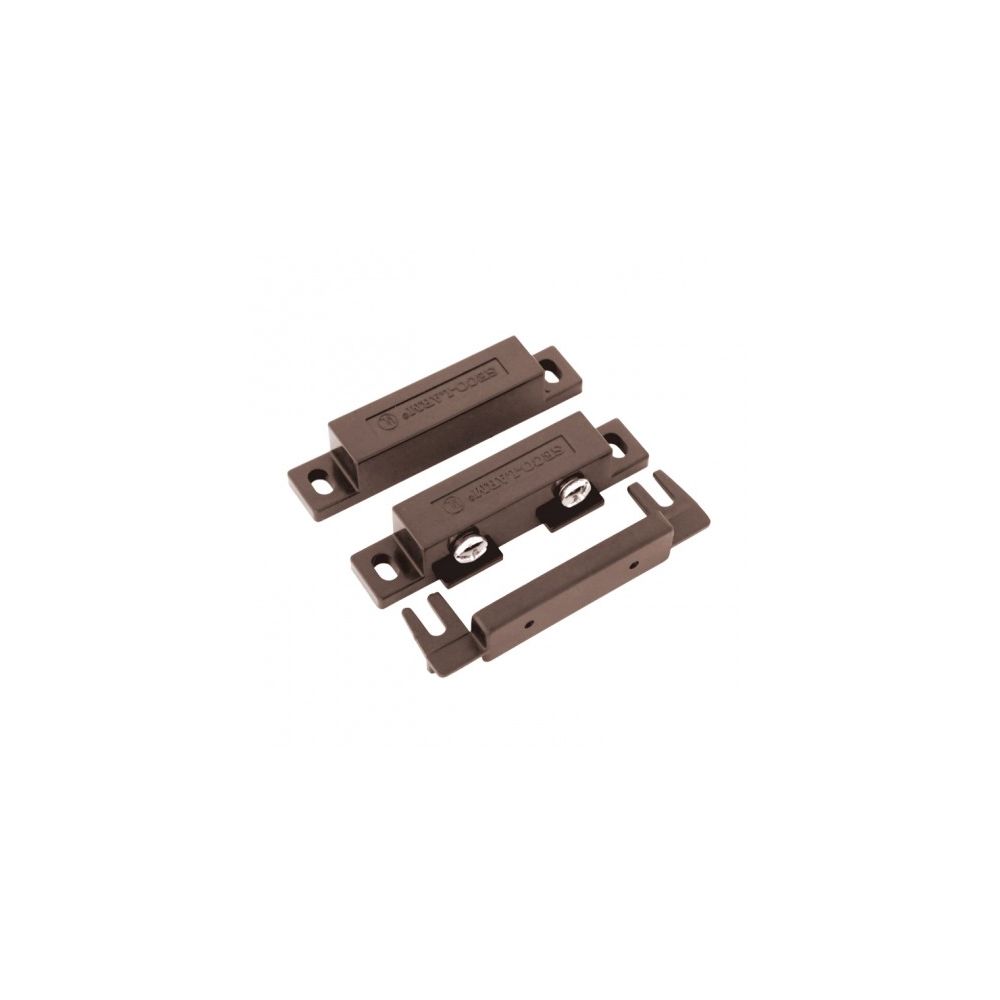

Screw-Terminal Surface-Mount N.O. Magnetic Contacts
Web N°: 14-0145
$6.95
Screw-Terminal Surface-Mount N.O. Magnetic Contacts

Screw-Terminal Surface-Mount N.O. Magnetic Contacts

Web N°: 14-0145
$6.95

Colors

Selected Color: WHITE

Quantity available : 6

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Loop Type : Open loop
  • Electrical Configuration : N/C
  • Operation Gap : 1/2" (13mm)
  • Terminals : Screw-type
  • Mounting Tabs : Yes
  • Material - Case : High-impact ABS plastic
  • Contacts : Deactivated rhodium on gold under-plating
  • Contact Rating : 1.0A@10VDC (max), 10W (max)
  • Operating Temperature : -15º~+160º F (-25º~70º C)
  • Switch Cycles : 50 Million (0.1mA@5VDC)
  • Switch Dimensions : 2-1/2" x 9/16" x 1/2" (63.5 x 14 x 13 mm)
  • Magnet Dimensions : 2-1/2" x 1/2" x 1/2" (63.5 x 13 x 13 mm)
  • Magnet Type : Ferrite
