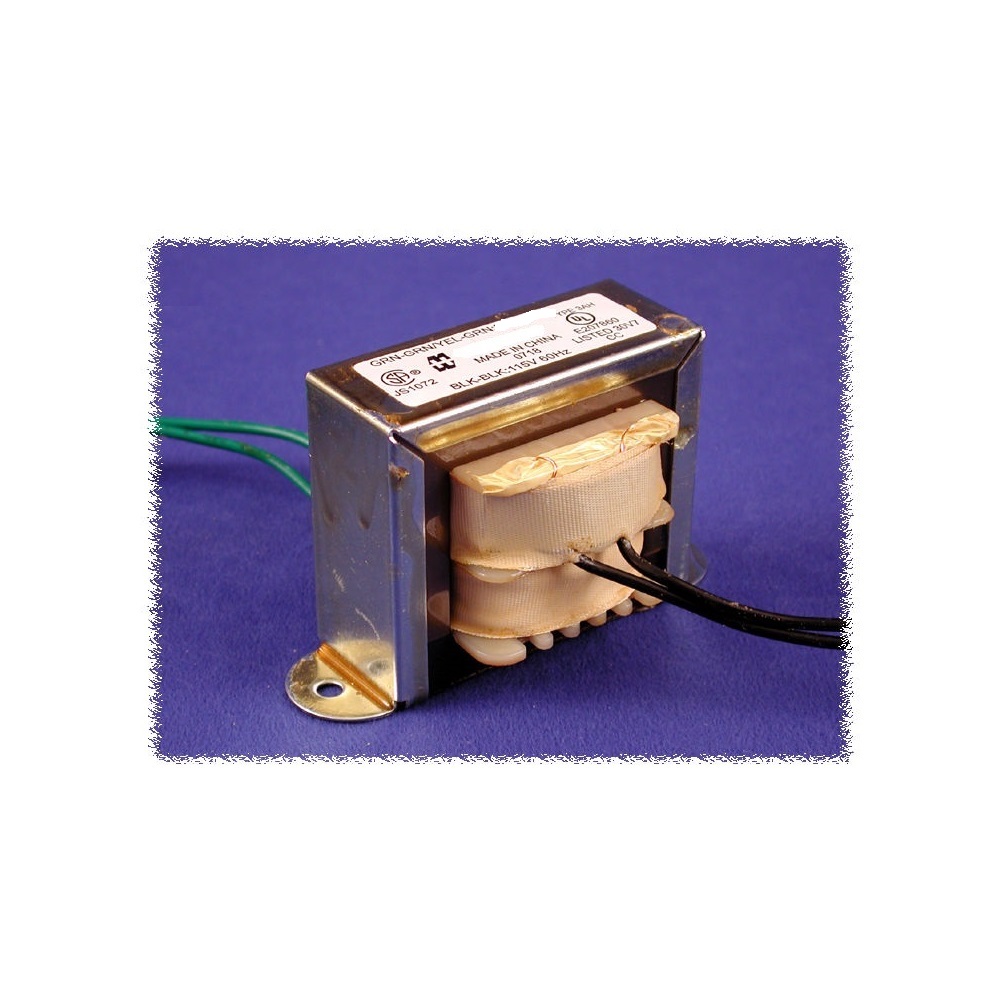

Single Primary L.V. Chassis Mount Power Supply - 90VA
Web N°: 40-0063
$49.95
Single Primary L.V. Chassis Mount Power Supply - 90VA
Web N°: 40-0063
$49.95
Description
- Secondary (RMS): 18 C.T. VAC 5A
- Primary (VAC): 115V 60Hz
- Economical single primary
- Secondaries are center tapped (C.T.), VAC (RMS)
- Open style, channel bracket, two hole chassis mount.
- 6" long leads
- Dual bobbin design
- no electrostatic shield required - Class B insulation (130 degrees, C) for extra protection
- UL listed as a Class A (105 degree, C) design
- Hi-Pot test of 2,000V RMS
- UL listed CSA certified
- Dimensions: 4.03" x 2.5" x 2.63" x 3.56"
- Mounting hole: 0.187"
