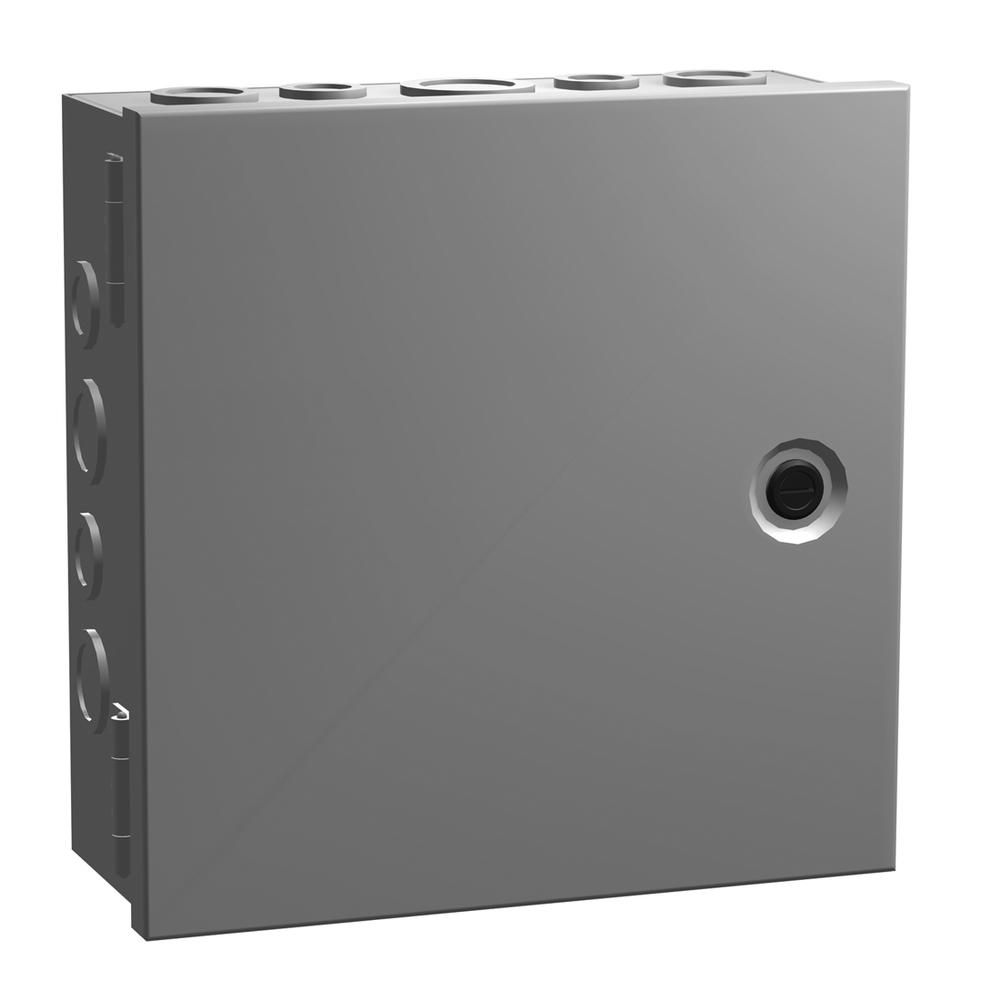

MILD STEEL JUNCTION BOX WITH DOOR 10 X 8 X 4
HAMMOND
Web N°: 20-0410
$49.95
MILD STEEL JUNCTION BOX WITH DOOR 10 X 8 X 4
HAMMOND
Web N°: 20-0410
$49.95
Description
Application
- Designed for general purpose indoor commercial use as a junction, pull or switch box.
- Hinged cover with latch provides easy access during installation and maintenance.
Standards
- UL-50 Type 1
- CSA Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
Construction
- Formed and spot welded from 16 gauge
- Formed steel covers close by use of slotted quarter turn latch.
- Full swing, hinged door. NOTE: Former butt hinge being transitioned to new integral design starting late 2020. See image gallery for view of new hinge.
- Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
- Through holes in back for wall mounting.
- Grounding location embossed in body.
Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.
Part Number CHKO1084
