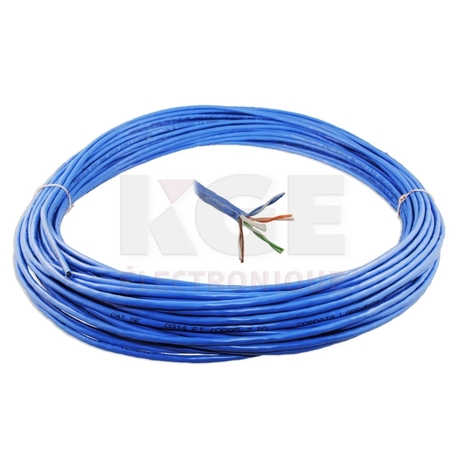

Blue 100ft CAT-5E network wire
Web N°: 30-0018
$27.00
Blue 100ft CAT-5E network wire
Web N°: 30-0018
$27.00
Description
- RoHS Compliant
- TIA/EIA 568-B.2 compliant 4-pair UTP cable.
- 24 AWG (0.5 mm) Solid Annealed Bare Copper
- Insulation: Riser (Thermoplastic)
- Jacket Material: Riser Flame Retardant PVC (polyvinyl Chloride)
- Nominal diameter: 0.2"
- Made in USA
- Attenuation (db/100m) @ 100 MHz: 22
- Input Impedance nominal: 100 ohms
- Delay Skew (ns/100 m), maximum: 45
- Velocity of propagation nominal: 71%
- DC Resistance (ohms/100m) maximum: 9.38
- Resistance Unbalance maximum: 5%
