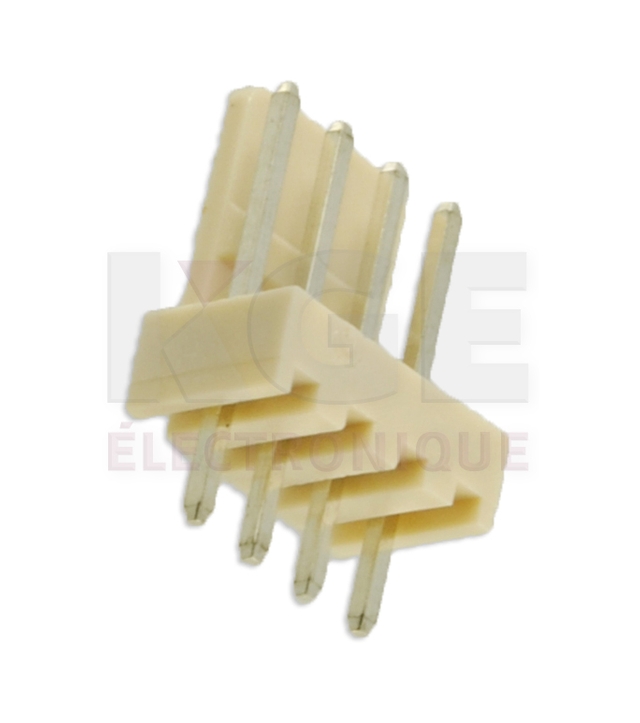

.100" Centers 4 Position Polarized Locking Header
Web N°: 26-0649
$0.20
.100

.100" Centers 4 Position Polarized Locking Header

Web N°: 26-0649
$0.20

Quantity available : 100

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Details and Specifications

  • Width: .400".
  • Voltage Rating: 250V AC, DC.
  • Current Rating: 5 A AC, DC.
  • Withstand Voltage: 1000V AC/minute.
  • Insulation Resistance: 1000m ohm Minute.
  • Temperature Range: -25ºC - +85ºC.
  • Thickness: .063” (1.6mm).
  • Contact Resistance: Initial Value : 10 ohms Max / After environmental testing : 20m ohms max.
  • Material: Post - Brass, Tin Plate/Base-Nylon 66, UL 94V-2.
