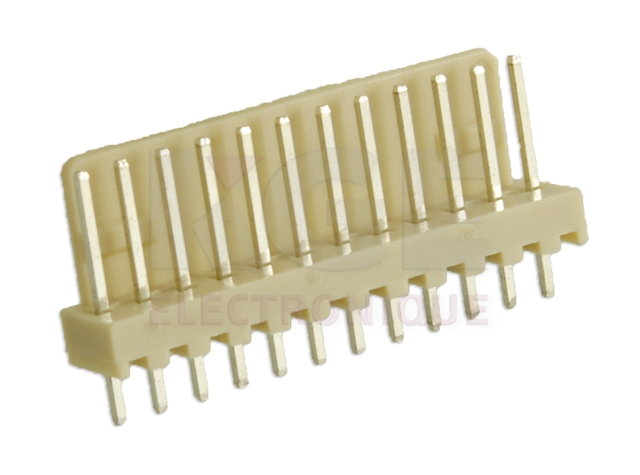

.100" Centers 12 Position Polarized Locking Header
Web N°: 26-0650
$0.55
.100" Centers 12 Position Polarized Locking Header
Web N°: 26-0650
$0.55
Details and Specifications
- Width: 1.2"
- Voltage Rating: 250V AC, DC
- Current Rating: 5 A AC, DC
- Withstand Voltage: 1000V AC/minute
- Insulation Resistance: 1000m ohm Minute
- Temperature Range: -25ºC - +85ºC
- Thickness: .063” (1.6mm)
- Contact Resistance: Initial Value : 10 ohms Max / After environmental testing : 20m ohms max.
- Material: Post - Brass, Tin Plate / Base - Nylon 66, UL 94V
