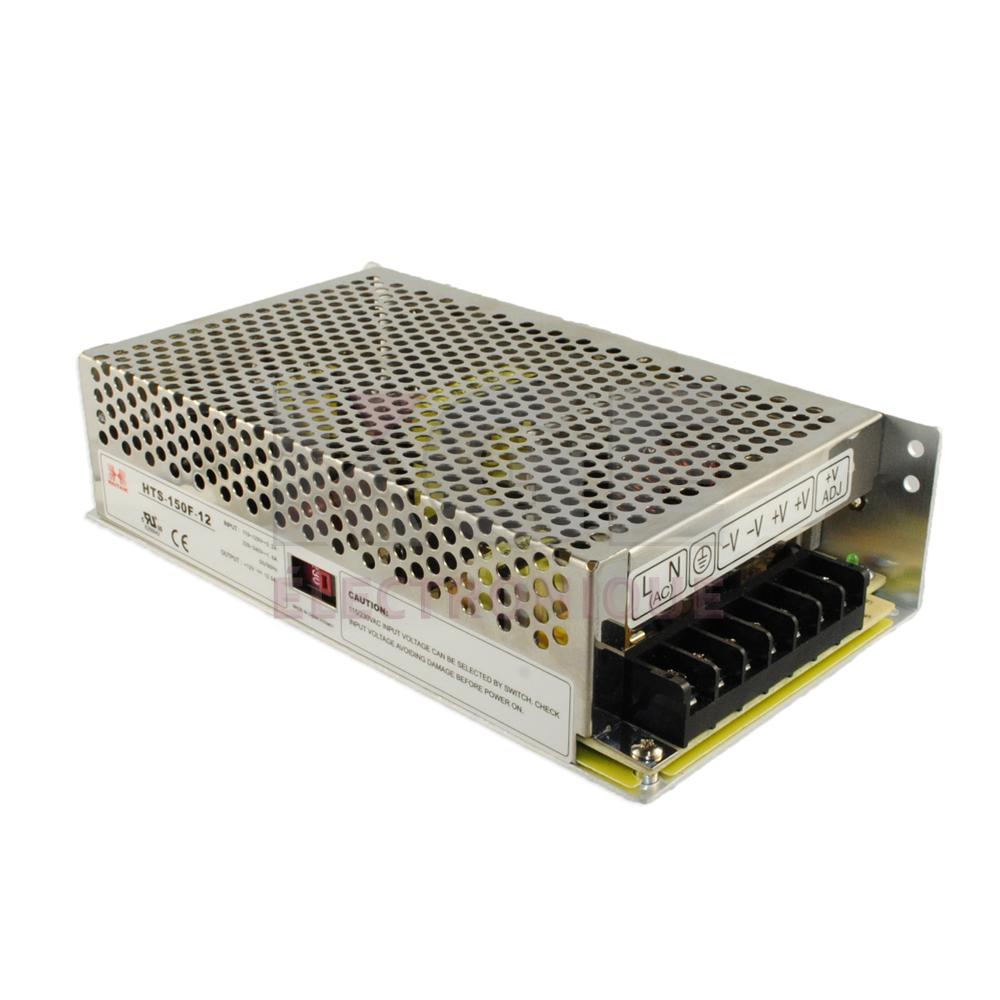

12VDC 12.5A switching power supply
Web N°: 40-0046
$74.95
12VDC 12.5A switching power supply
Out of stock

12VDC 12.5A switching power supply

Web N°: 40-0046
$74.95

This product is out of stock.


Description

  • AC input range selectable by switch
  • EMI meet EN55022 (CISPR22) class B
  • Low power consuption
  • Approval: UL/CUL/TUV/CB/CE
  • Protections: over load/over voltage/shot circuit
  • 100% full load high temperature burn-in test
  • 2 years warranty
  • Case: 605 size: 199x110x50mm

Details and Specifications

  • Input voltage range: 88-132VAC/176-264VAC Selectable by switch
  • Input frequency: 47-63Hz
  • Inrush current: cold start,30A/115VAC, 50A/230VAC.
  • Output Adjustement range: +/- 10% rated output voltage
  • Line regulation: +/-0.5%
  • Output over load protection: 105-150% shut off, AC recycle to Re-Start
  • Output over voltage protection: 115%-145% Rated output Voltage
  • Output over short circuit protection: Shut off, AC Recycle to Re-start
  • Rise, Hold up time: 50m, 20ms at full load (typical)
  • Hi-pot isolation: I/P-o/p: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
  • Operating Temperature Range: 0°c to +50°c 100%, -10°C 80%, +60°C 60% load
  • Storage Temperature Range: -40°C to +85°C, 0 to 85% RH (non-condensing)
  • Safety Standards: UL60950-1,TUV EN60950-1
  • EMC Standards: EN55022 class B, EN61000-3-2,3
  • EN61000-4-2,3,4,5,6,8,11, ENV50204
  • Cooling method: Free air cooling convection
  • Weight: 0.8 kgs/pcs
