12V 9Ah Battery
Web N°: 19-0389
$39.95
12V 9Ah Battery
Web N°: 19-0389
$39.95
Description

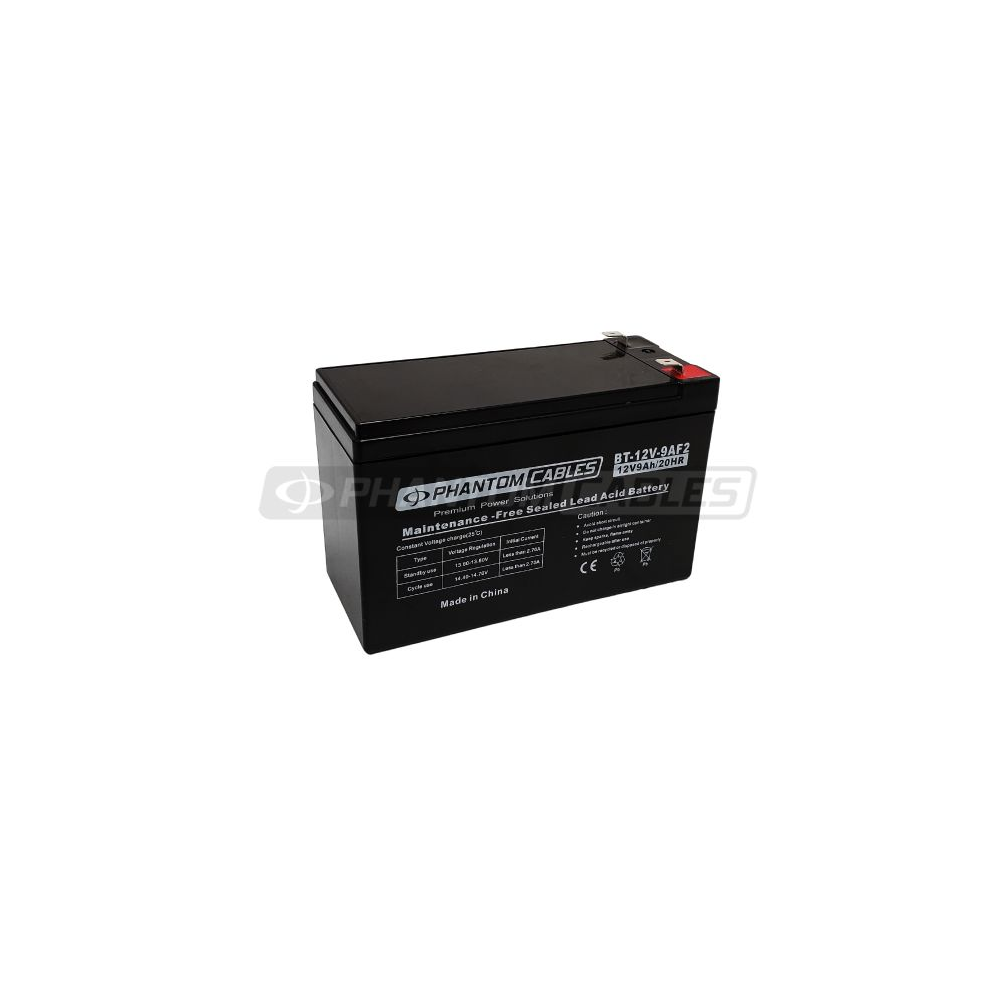

The BT-12V-9AF2 is a 12 volt, 9 amp sealed lead acid, non-spillable, rechargeable battery. This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Details and Specifications
Specifications
Physical Characteristics
Type UPS Replacement
Voltage 12V
Amps 9A

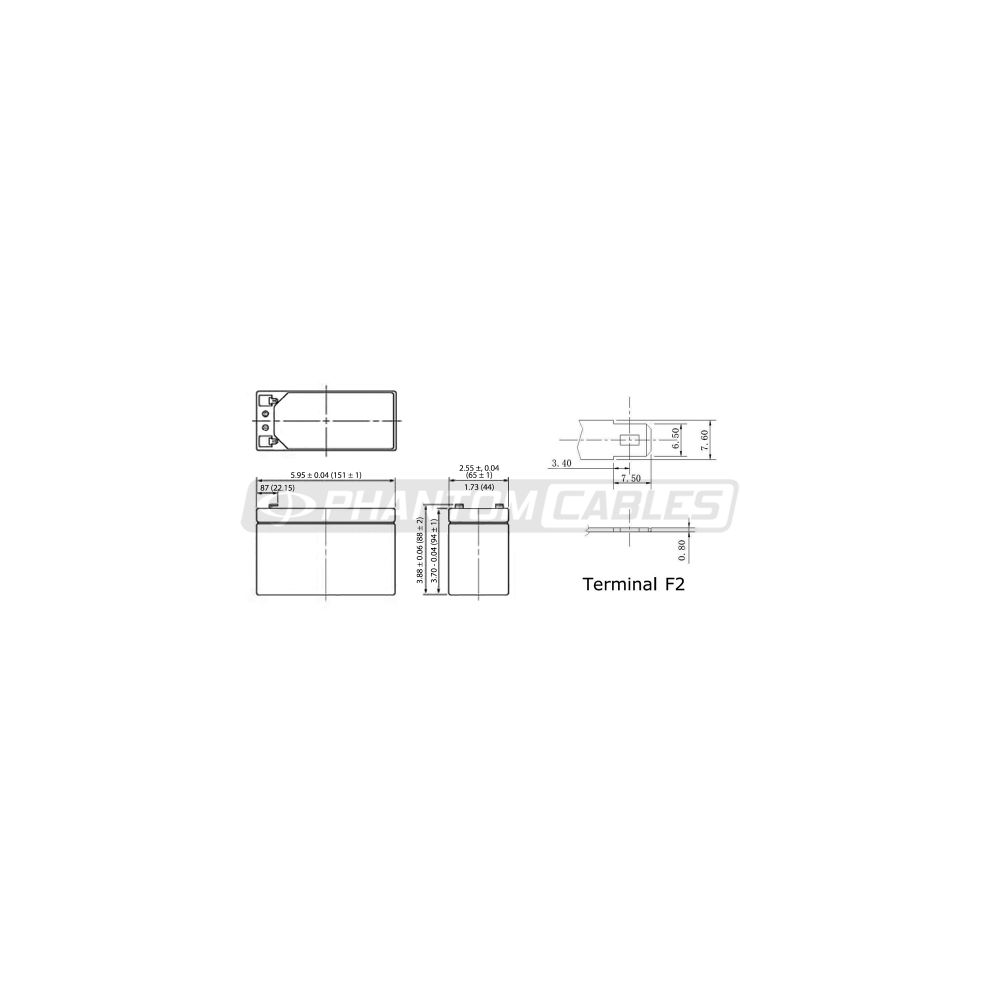

Terminal Type F2
Tab Size 0.25 inch
Container Material ABS(UL-94HB)
Length 2.6 inches [65mm]
Width 6 inches [151mm]
Height 3.7 inches [94mm]
Operating Temperature 25±3? (77±5? )
Performance
Internal Resistance Approx.24mOhm
Max. Discharge Current Current 127.5A(5S)
Rated Capacity 9.0AH (20hr, 1.75V/cell,25°C/77°F)
8.2AH (10hr, 1.75V/cell,25°C/77°F)
8.0AH (5hr, 1.75V/cell,25°C/77°F)
7.3AH (3hr, 1.75V/cell,25°C/77°F)
5.5AH (1hr, 1.75V/cell,25°C/77°F)
Cycle Use Charge Current Less Than 0.25CA
14.1V~14.7V@25°C (77°F)Temp. Coefficient -30mV/?
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25?(77?)Temp. Coefficient -20mV/?
Capacity affected by
Temperature 40°C 103%
25°C 100%
0°C 86%
-15°C 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
