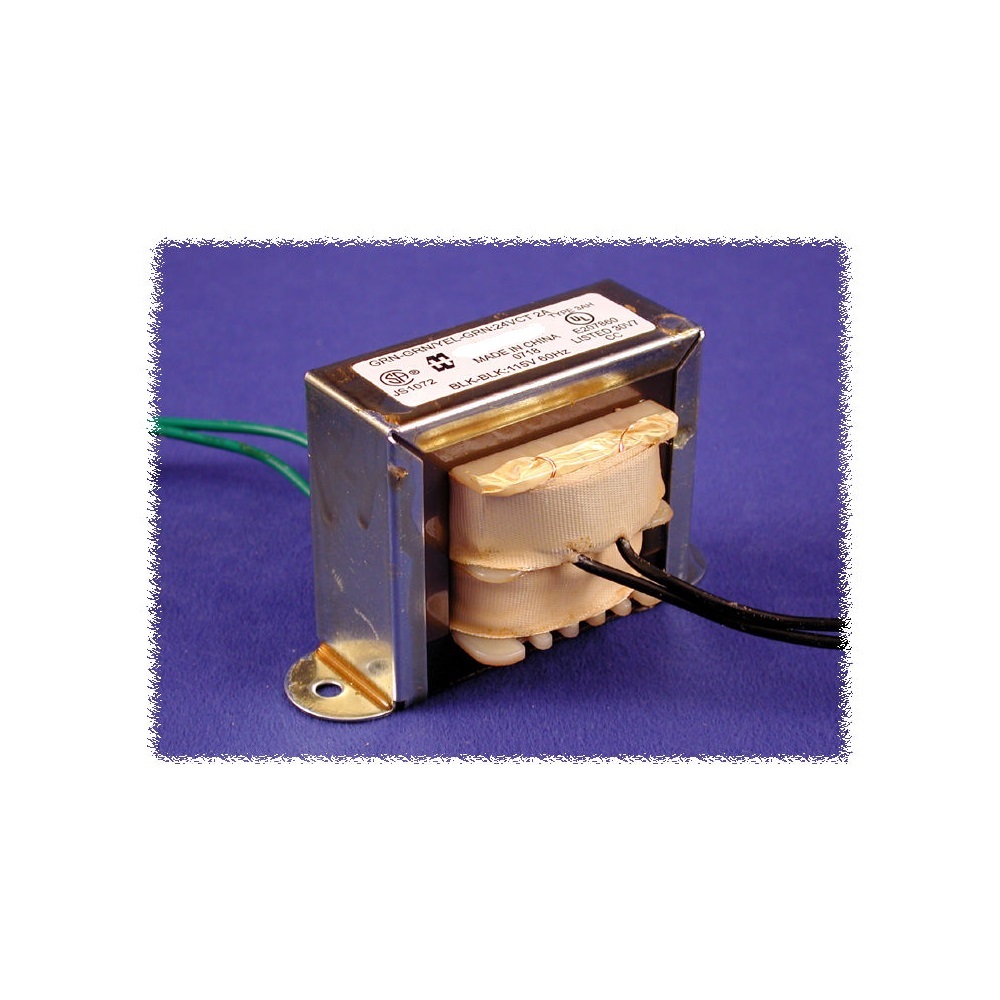

Transformer 16 C.T. 115V 60 Hz. 166M16
HAMMOND
Web N°: 40-0061
$29.95
Transformer 16 C.T. 115V 60 Hz. 166M16
HAMMOND
Web N°: 40-0061
$29.95
Description
- Economical single primary 115 VAC, 60 Hz. (or 117 50/60 Hz. see table)
- Most secondaries are center tapped (C.T.), VAC (RMS) - see table for details.
- Open style, channel bracket, two hole chassis mount.
- Minimum 6" long leads.
- Dual bobbin design - no electrostatic shield required.
- We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
- Hi-Pot test of 2,000V RMS.
- UL listed.
- CSA certified.
