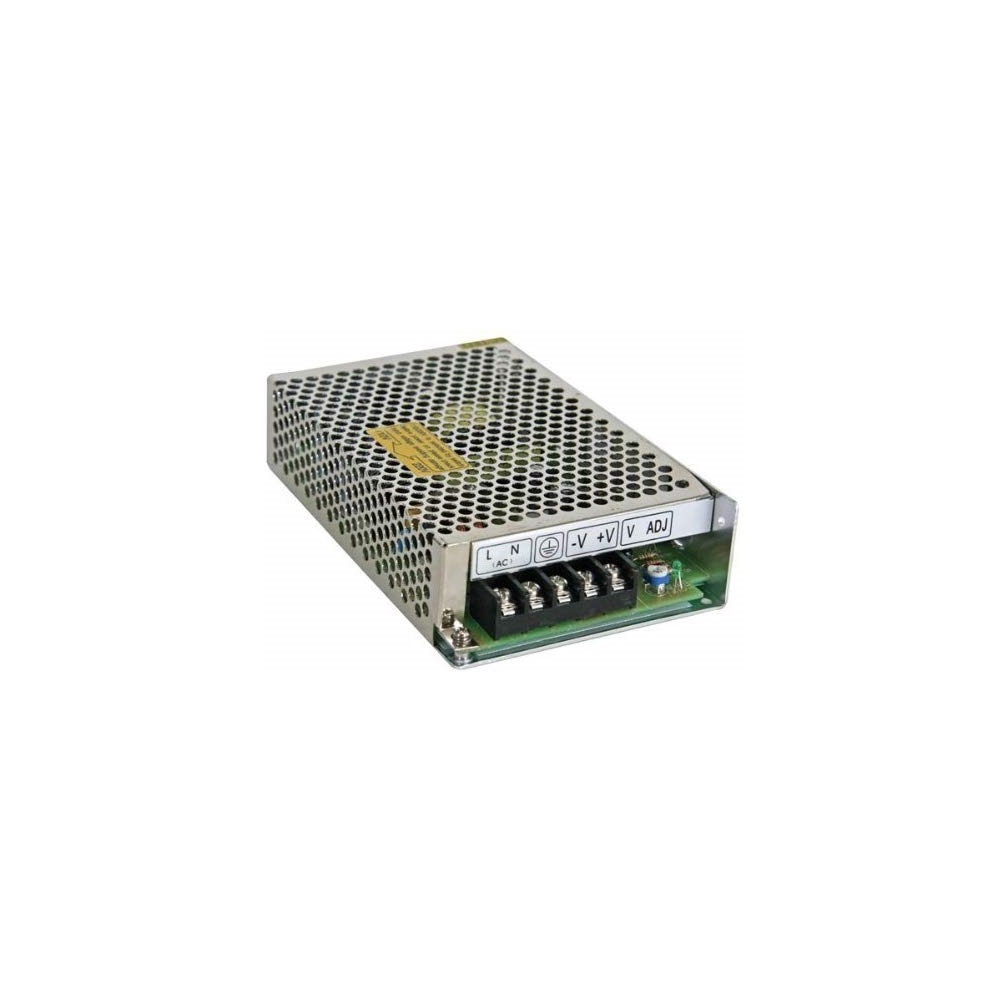

Power Supply 12VDC 8.3A 100W
Web N°: 40-0190
$52.95
Power Supply 12VDC 8.3A 100W
Out of stock

Power Supply 12VDC 8.3A 100W

Web N°: 40-0190
$52.95

This product is out of stock.


Description

  • output: 12VDC ± 1%
  • output current: 0.0 ~ 8.3A
  • ripple and noise: 120mV
  • power output: 100W
  • dimensions: 6 19/64" x 3 13/16" x 1 3/8"
  • weight: 15.5 oz
  • overload protection: 105% - 150% fold back current limiting with auto-recovery
  • input voltage: 100-120 Vac/200-240 Vac (switch selectable) 50/60 Hz
  • input rush current: 15 A @ 110 V
  • setup, rise and hold-up time: 200 ms, 100 ms, 300 ms at full load and 230 VAC
  • operating humidity conditions: 20-90 % RH
  • overload protection: 105-150 % fold back current limiting with auto-recovery
  • DC adjustment range: ± 10 % rated output voltage (V adj)
  • efficency: 74 %
  • connection: 5, 7, or 9 pole terminal block, pitch 0.37"
  • withstand voltage (max. 1 min): I/P - O/P: 1.5 kVAC, I/P - FG: 0.5 kVAC
  • WORKING TEMPARATURE:
  • 14 °F to 32 °F: 80 % load
  • 32 °F to 122 °F: 100 % load
  • 122 °F - 140 °F: 60 % load
