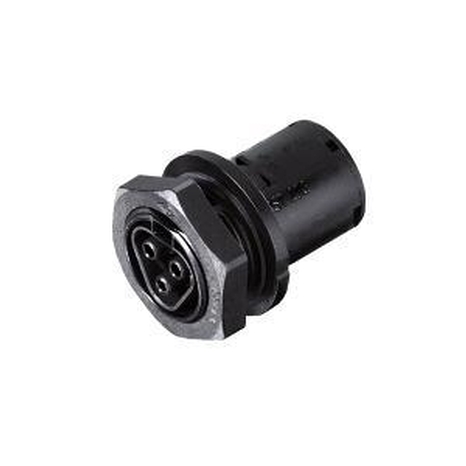

Chassis 3 Pole Female Connector
Web N°: 26-0441
$14.95
Chassis 3 Pole Female Connector
Web N°: 26-0441
$14.95
Description
Device connectors, standard M25, 3 pole, female, screw connection, 250V/20A, color of coding: black, color of nut: black
Rated current: 20 A
Rated voltage: 250 V
Pollution degree: 3
Mechanical coding
Rated impulse voltage: 4 kV
Interlockable
Color of coding/contact carrier: Black
Connection cross section solid: 4 square mm
Connection cross section stranded: 4 square mm
Terminations per pole: 1
Number of poles: 3
Connection type: Screw connection
Connecting thread metric: M25
Angle of plug: Straight
Degree of protection (IP): IP66/IP68
Built-in component: Snap-in/screw-in
Housing material: Polyamide
Halogen free
Contact material: CuZn
Insulation components continous temperature: 100 °C
Surface finish: Silver-plated
Length: 46.5 mm
Width: 35 mm
Height: 35 mm
