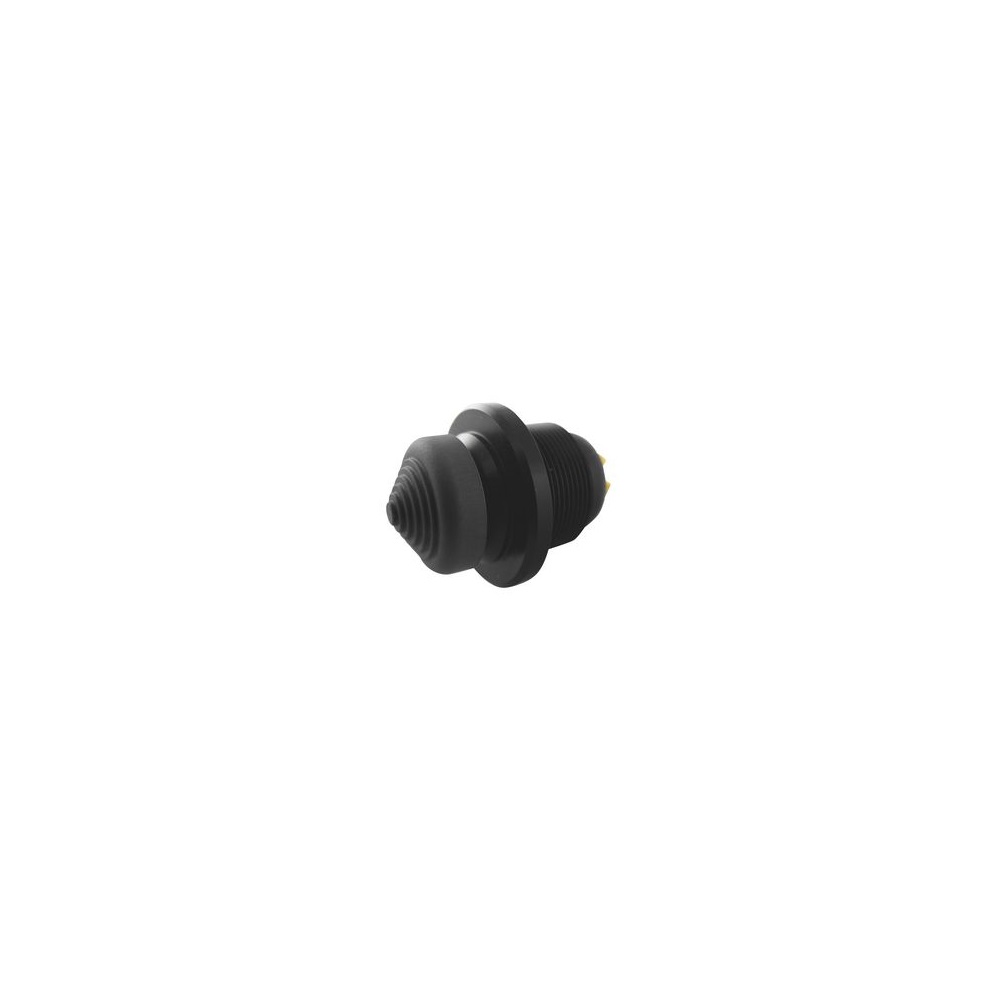

Joystick IP67 4 Positions 2A 115V
Web N°: 37-0327
$39.95
Joystick IP67 4 Positions 2A 115V

Joystick IP67 4 Positions 2A 115V

Web N°: 37-0327
$39.95

Quantity available : 3

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Two styles available: behind-panel mount or front-panel mount
  • Rating : 2A resistive, 0.5A inductive at 28VDC or 115VAC
  • 4-way contact is made in the opposite direction of travel
  • PCB mount/solder lug connection
  • Maximum contact resistance is 0.05ohm, Insulation resistance is 10,000Mohm
  • Minimum operational life is 100,000cycles
  • Thermoplastic body, aluminium alloy bushing
  • Brass with gold plating contacts
  • Sealed against contamination when properly mounted (IP67)
  • Operating temperature range from -55°C to +85°C
