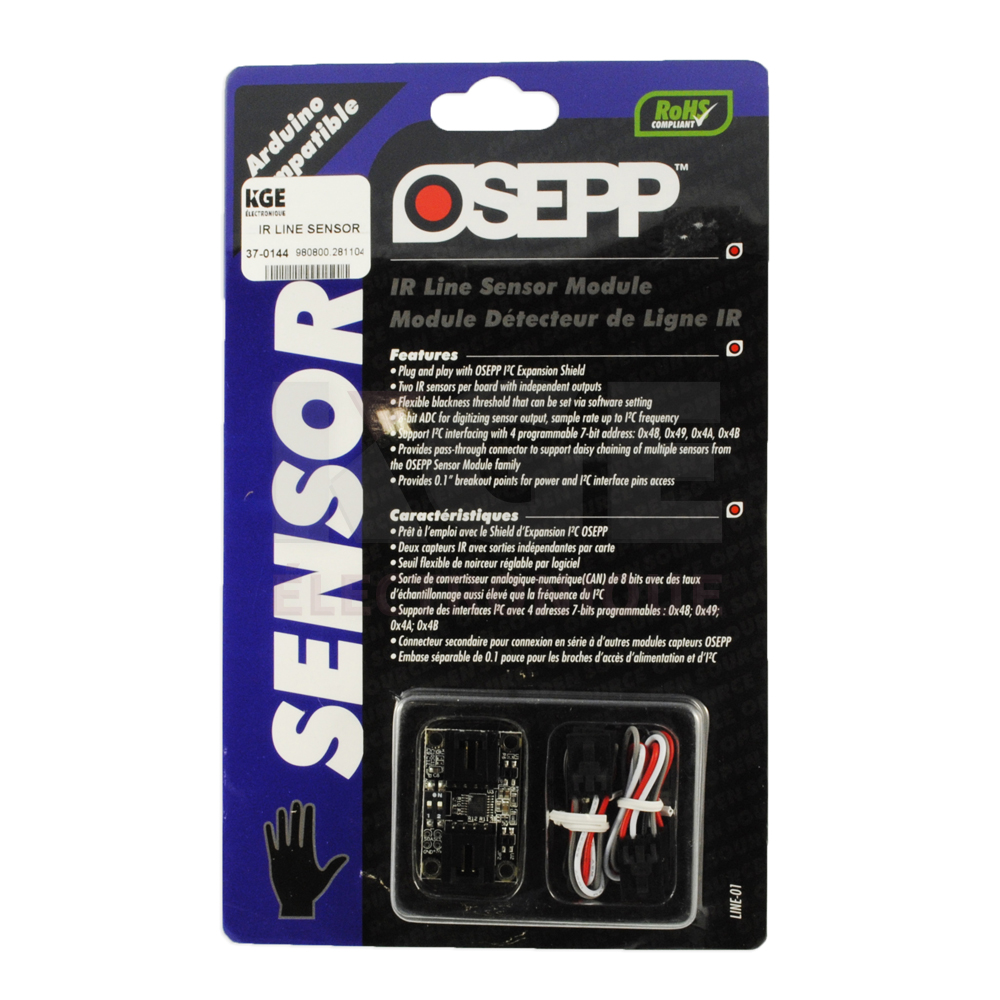

IR Line Sensor

OSEPP

Web N°: 37-0144

$22.95

Differentiates the reflections between dark and light surfaces.
It utilizes the Fairchild QRE1113GR miniature reflective object sensor and the NXP PCA9691 A/D converter.
The 8-bit A/D converter digitalizes the sensor output.
The sensor operates by emitting an IR signal via an LED, and then measuring the amount of reflection to determine the blackness of the surface.
The module uses the I2C interface for data communication.
The I2C lines are packaged with the power and ground lines into a modular connector, which allows easy plug and play operation.
There are two connectors on the module to enable daisy chaining of multiple I2C devices together.
This sensor module is ideal for designs that required to track black line on a white surface (or vice versa), such as in a line-following robot, or used to detect the outer perimeters of a competition ring.

I2C Addresses (7-bit): 0x48, 0x49, 0x4A, 0x4B.
Form Factor: 23 mm x 36 mm.
Power Consumption: 400 mW.
Connector Pin Definition: Pin 1: Power, Pin 2: I2C Data, Pin 3: Ground, Pin 4: I2C Clock.
Plug and play with I2C Expansion Shield.
Two IR sensors per board with independent outputs.
Flexible blackness threshold that can be set via software setting.
8-bit ADC for digitizing sensor output, sample rate up to I2C frequency.
Support I2C interfacing with 4 programmable 7-bit address: 0x48, 0x49, 0x4A, 0x4B.
Provides pass-through connector to support daisy chaining of multiple sensors from the Sensor Module family.
Provides 0.1” breakout points for power and I2C interface pins access.
