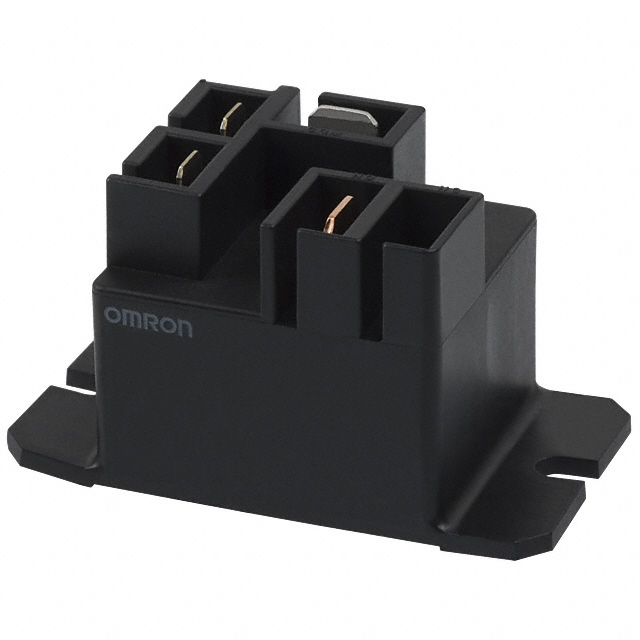

General Purpose SPST 30A 24V Relay
Web N°: 25-1442
$11.95
General Purpose SPST 30A 24V Relay
Web N°: 25-1442
$11.95
Details and Specifications
- Relay Type: General Purpose.
- Coil Type: Non Latching.
- Coil Current: 36mA.
- Coil Voltage: 24VDC.
- Contact Form: SPST-NO (1 Form A).
- Contact Rating (Current): 30A.
- Switching Voltage: 250VAC, 28VDC - Max.
- Turn On Voltage (Max): 18 VDC.
- Turn Off Voltage (Min): 2.4 VDC.
- Operate Time: 15ms.
- Release Time: 10ms.
- Features: Insulation - Class F.
- Mounting Type: Chassis Mount.
- Termination Style: Quick Connect - 0.187"/0.250".
- Contact Material: Silver Cadmium Oxide (AgCdO).
- Coil Power: 900 mW.
- Coil Resistance: 660 Ohms.
- Operating Temperature: -55°C ~ 105°C.
