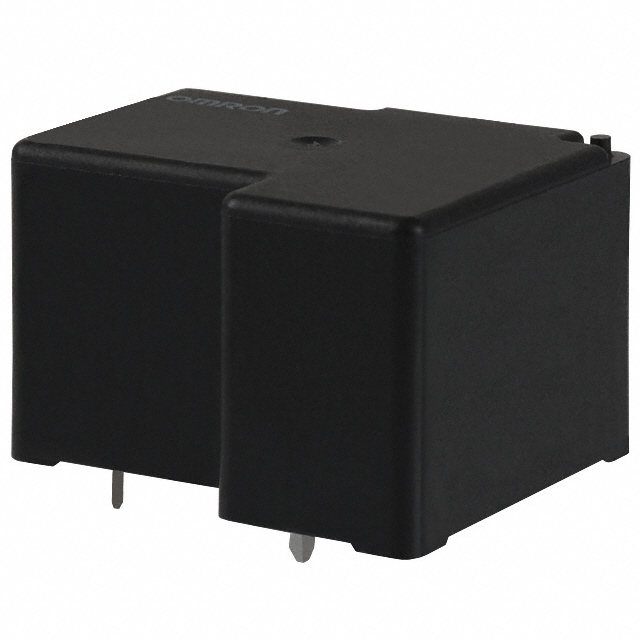

General Purpose SPST 30A 24V Relay
Web N°: 25-1443
$6.95
General Purpose SPST 30A 24V Relay
Web N°: 25-1443
$6.95
Details and Specifications
- Relay Type: General Purpose
- Coil Type: Non Latching
- Coil Current: 36mA
- Coil Voltage: 24VDC
- Contact Form: SPST-NO (1 Form A)
- Contact Rating (Current): 30A
- Switching Voltage: 250VAC, 28VDC - Max
- Turn On Voltage (Max): 18 VDC
- Turn Off Voltage (Min): 2.4 VDC
- Operate Time: 15ms
- Release Time: 10ms
- Features: Insulation - Class F, Sealed - Fully
- Mounting Type: Through Hole
- Termination Style: PC Pin
- Contact Material: Silver Cadmium Oxide (AgCdO)
- Coil Power: 900 mW
- Coil Resistance: 660 Ohms
- Operating Temperature: -55°C ~ 105°C
