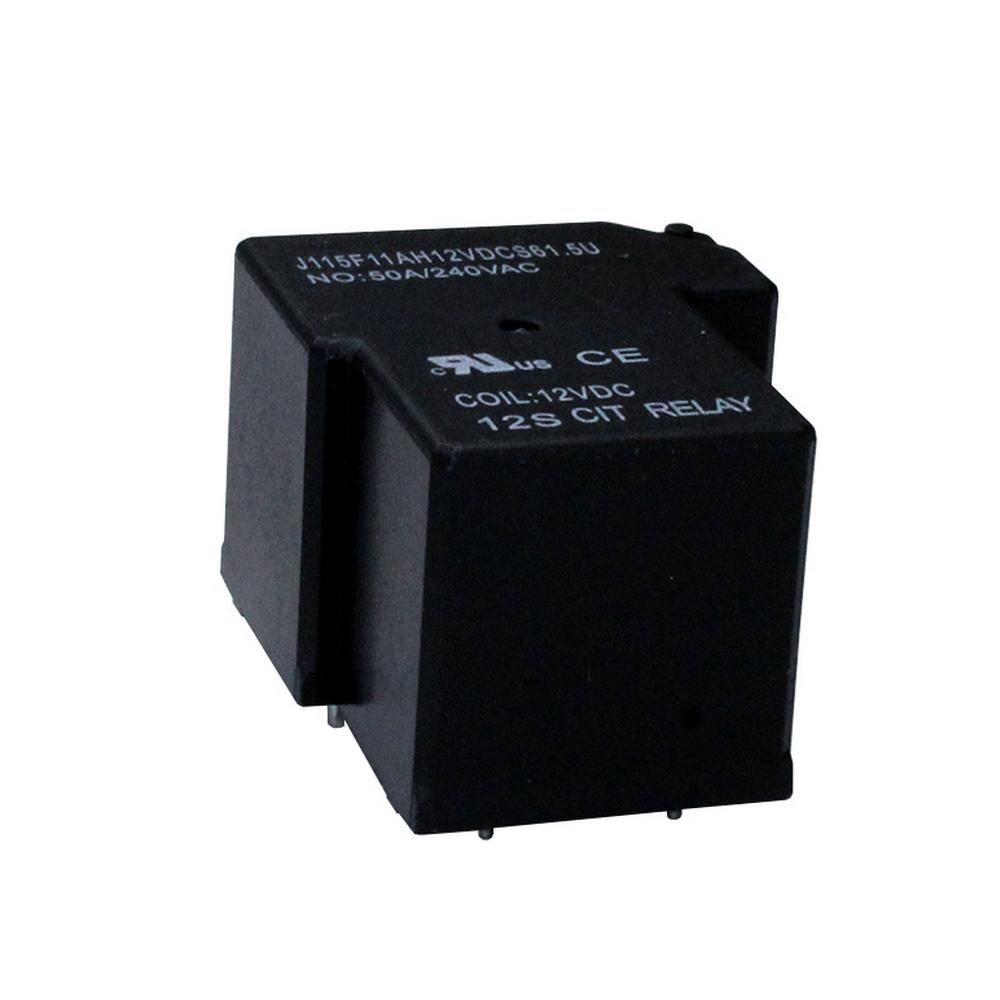

Power Sealed 12V Relay 50A PCB Mount
Web N°: 25-2134
$11.95
Power Sealed 12V Relay 50A PCB Mount
Web N°: 25-2134
$11.95
Description
|
Mfr
|
CIT Relay and Switch
|
|
Series
|
J115F
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
12VDC
|
|
Contact Form
|
SPST-NO (1 Form A)
|
|
Contact Rating (Current)
|
50 A
|
|
Switching Voltage
|
277VAC, 110VDC - Max
|
|
Coil Current
|
125 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Seal Rating
|
Sealed - Fully
|
|
Coil Insulation
|
Class F
|
|
Must Operate Voltage
|
9 VDC
|
|
Must Release Voltage
|
1.2 VDC
|
|
Operate Time
|
15 ms
|
|
Release Time
|
10 ms
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Contact Material
|
Silver Tin Oxide Indium Oxide (AgSnOInO)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
96 Ohms
|
