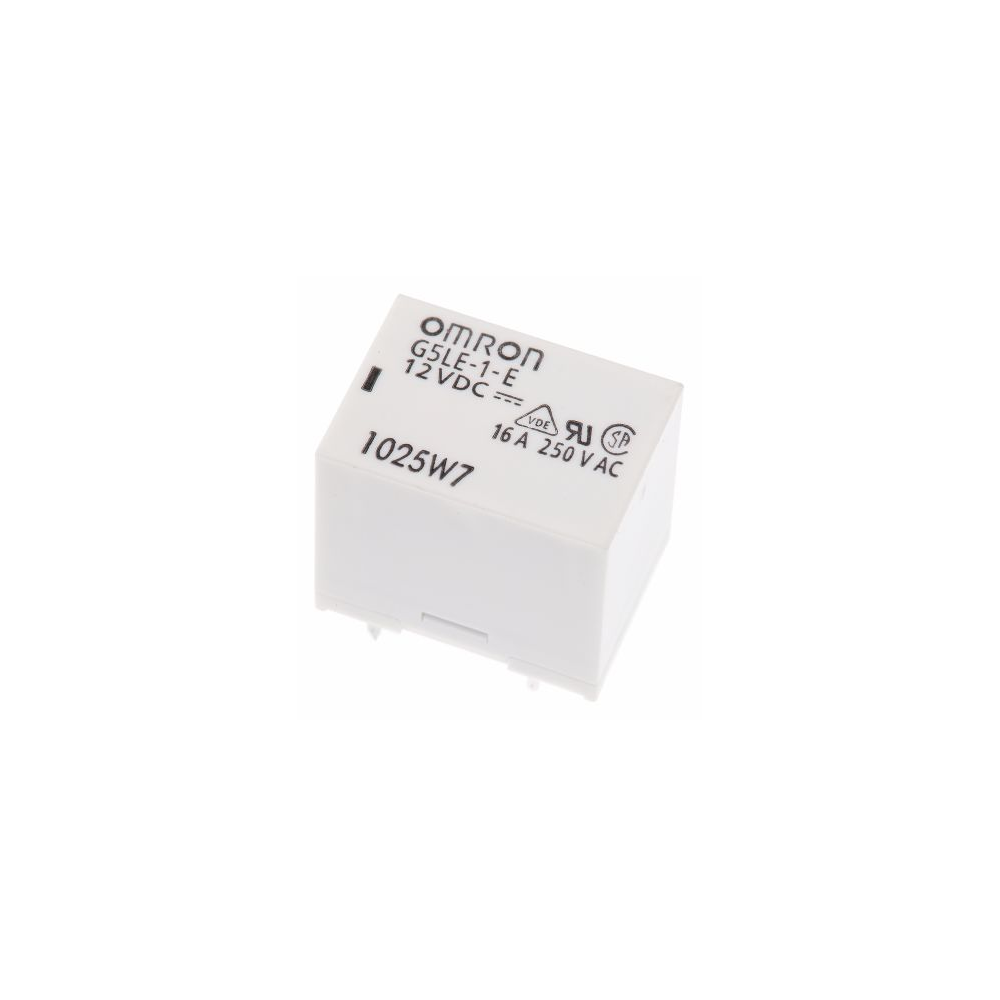

SPDT Relay 16A 12V
Web N°: 25-2384
$5.95
SPDT Relay 16A 12V
Web N°: 25-2384
$5.95
Description
- Mounting Type Through Hole
- Coil Voltage 12VDC
- Contact Form SPDT (1 Form C)
- Contact Rating (Current) 16A
- Switching Voltage 250VAC - Max
- Coil Current 33,3mA
- Coil Type Non Latching
- Features -
- Termination Style PC Pin
- Seal Rating Sealed - Flux Protection
- Coil Insulation Class F
- Must Operate Voltage 9 VDC
- Must Release Voltage 1.2 VDC
- Operate Time 10ms
- Release Time 5ms
- Operating Temperature -40°C ~ 85°C
- Contact Material Silver Tin Indium (AgSnIn)
- Relay Type General Purpose
- Coil Resistance 360 Ohms
