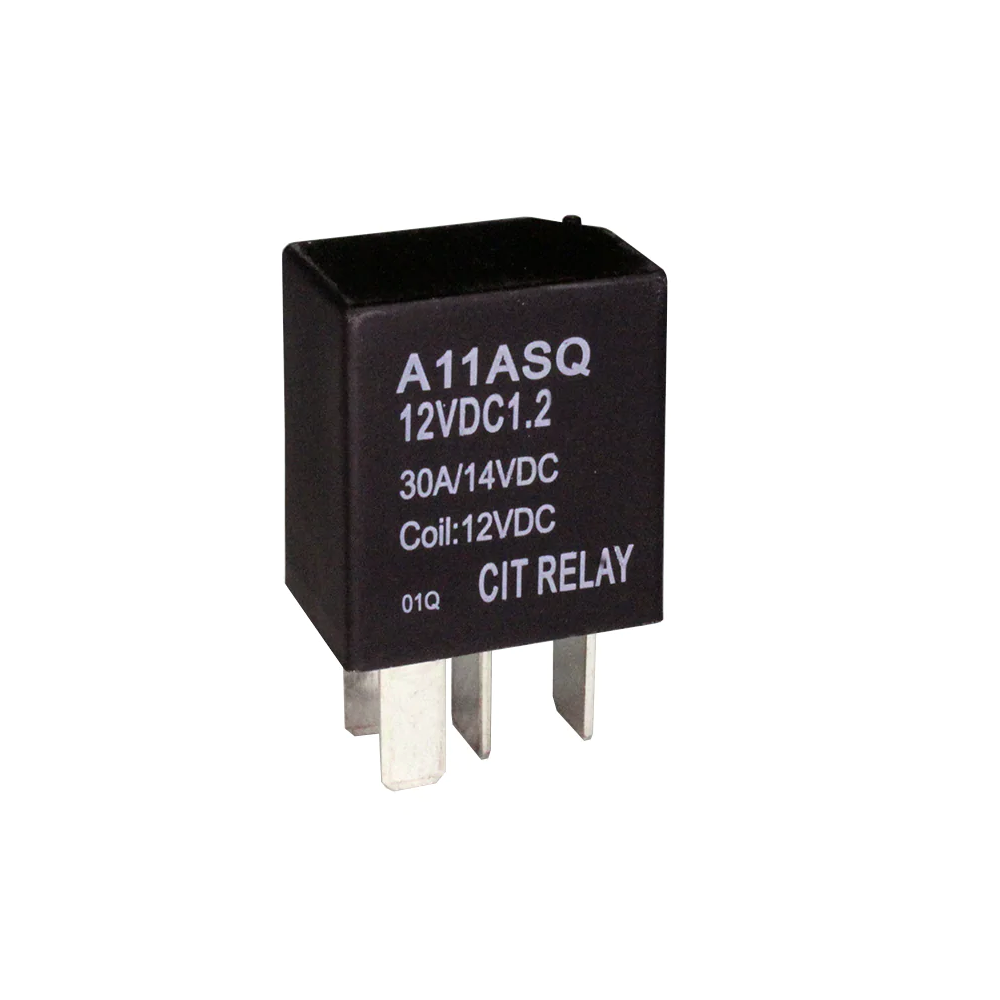

Relay Auto SPST 12V 30A
Web N°: 25-2912
$5.95
Relay Auto SPST 12V 30A
Web N°: 25-2912
$5.95
Description
- Coil Voltage: 12VDC
- Contact Form: SPST-NO (1 Form A)
- Switching Voltage: 75VDC - Max
- Must Operate Voltage: 8.4 VDC
- Must Release Voltage: 1.2 VDC
- Features: Sealed - Fully
- Mounting Type: Socketable
- Termination Style: Plug In, Quick Connect - 0.187" (4.7mm)
- Operating Temperature: -40°C ~ 85°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Coil Power: 1.2W
- Coil Current: 100 mA
- Contact Rating (Current): 30 A
- Operate Time: 10 ms
- Release Time: 7 ms
- Coil Resistance: 120 Ohms
