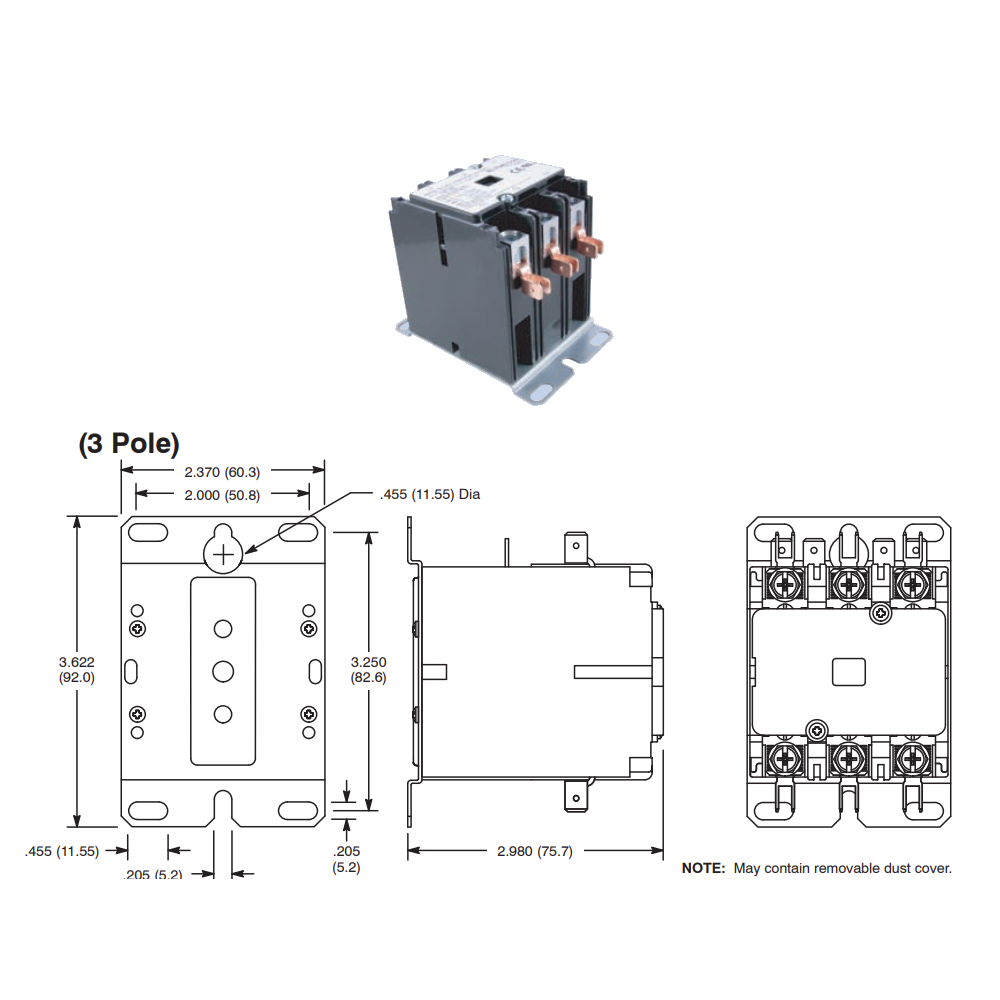

Contactor 3 poles 24VAC 40A 3PST-NO

Description

See PDF for additionnal info

• #14-4 Compression Lugs with .250” (6.35mm) QC Terminals
• Silver Cadmium Oxide Contacts

Coils

• Input Voltage: 24 VAC
• Nom. Sealed: 6.0 VA

Contacts

• Contact Arr: 3PST-NO
• Max. Contact Cur. @ 600VAC: 40A

Details and Specifications

Electrical Specifications

Initial Dielectric Strength

• Between Contact and Coil: 2200 VAC
• Between Poles: 2200 VAC (includes shunt)
• Between Open Contacts: 2200 VAC (no shunt)

Insulation System: 130 C Class B

Power Pole Terminations: Box Lug

Wire Size: 14-4

Recommended Tightening Torque: 40 in. lbs.

Quick Connects

• Coil Terminals: Dual: .250” QC
• Power Terminals: 3 Pole: Dual .250” QC

Coil Nom

Coil Resistance: 3 Pole: 7 (24V)

Max. Pick-up Voltage: 75% of nominal or less, DC

Min Drop-out Voltage: 6-15V (24V)

Nom Inrush (60Hz): 60 VA (3 Pole)

Max Coil Voltage: 30V (24V)

Environmental Characteristics

Operating: -40 C to +65 C

Weight

3 Pole: 1 lb. (453.6 grams)—typical

Note It is not recommended to mount or operate contactors upside-down.
