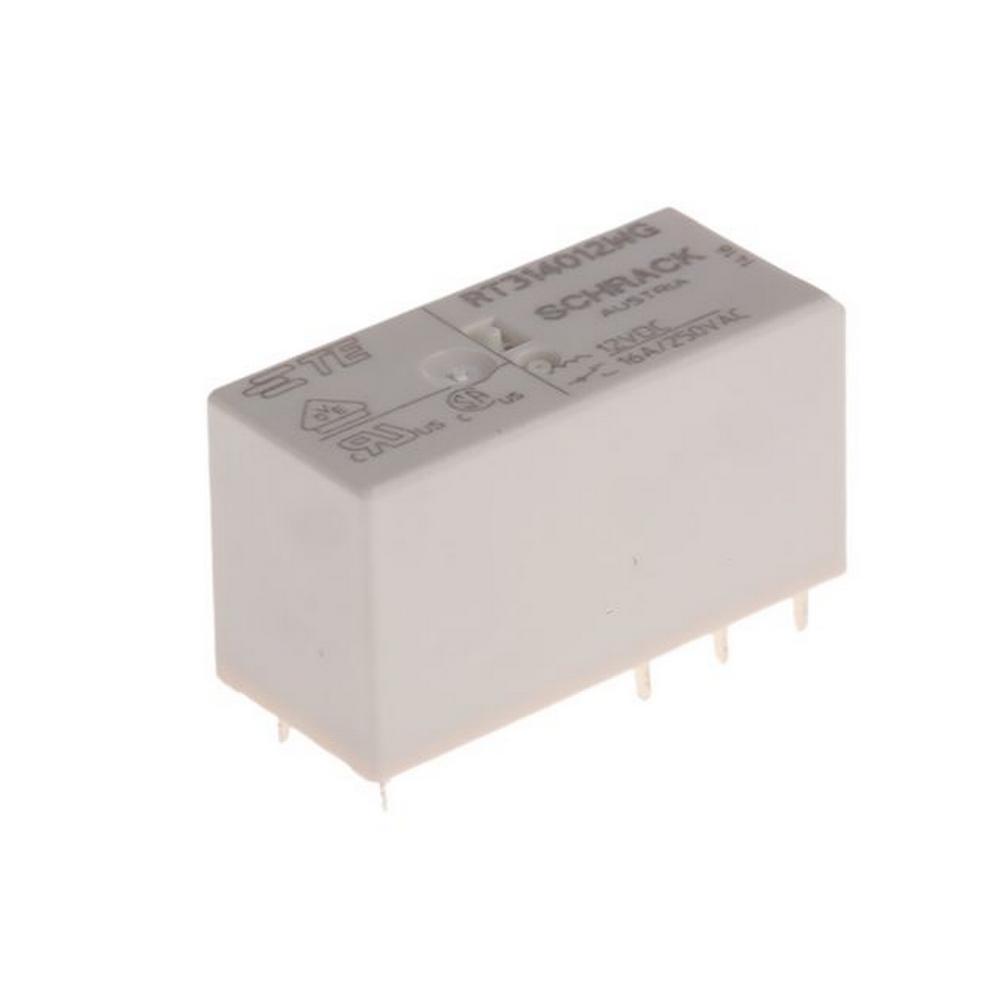

GENERAL PURPOSE RELAY SPDT (1 FORM C) COIL 12VDC
Web N°: 25-3048
$11.95
GENERAL PURPOSE RELAY SPDT (1 FORM C) COIL 12VDC
Web N°: 25-3048
$11.95
Description
|
Mfr
|
TE Connectivity Potter & Brumfield Relays
|
|
Series
|
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
12VDC
|
|
Contact Form
|
SPDT (1 Form C)
|
|
Contact Rating (Current)
|
16 A
|
|
Switching Voltage
|
400VAC - Max
|
|
Coil Current
|
33.3 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Seal Rating
|
Sealed - Flux Protection
|
|
Coil Insulation
|
Class F
|
|
Must Operate Voltage
|
8.4 VDC
|
|
Must Release Voltage
|
1.2 VDC
|
|
Operate Time
|
8 ms
|
|
Release Time
|
6 ms
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Contact Material
|
Silver Nickel (AgNi)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
360 Ohms
|
