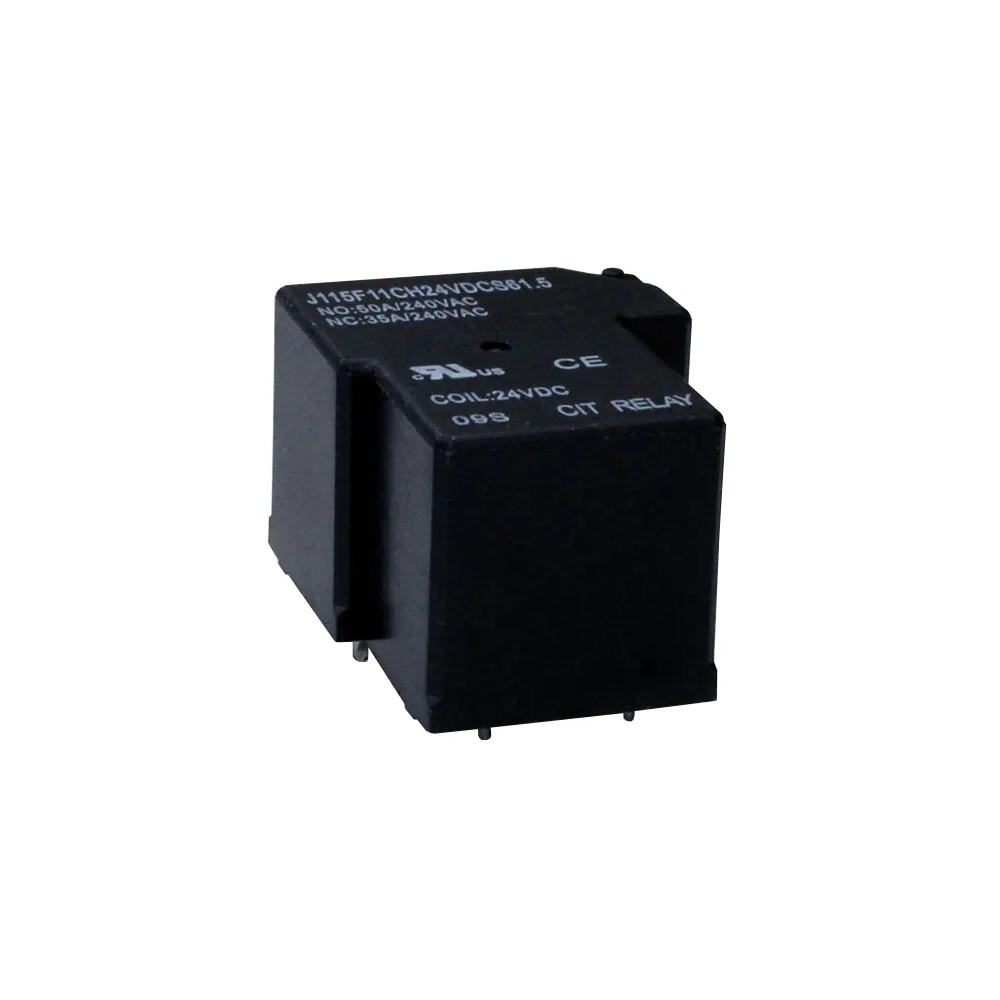

GENERAL PURPOSE RELAY SPDT 50A 24VDC
Web N°: 25-2521
$12.95
GENERAL PURPOSE RELAY SPDT 50A 24VDC
Web N°: 25-2521
$12.95
Description
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
|
Series
|
J115F
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
24VDC
|
|
Contact Form
|
SPDT (1 Form C)
|
|
Contact Rating (Current)
|
50 A
|
|
Switching Voltage
|
277VAC, 110VDC - Max
|
|
Coil Current
|
62.5 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin
|
|
Seal Rating
|
Sealed - Fully
|
|
Coil Insulation
|
Class F
|
|
Must Operate Voltage
|
18 VDC
|
|
Must Release Voltage
|
2.4 VDC
|
|
Operate Time
|
15 ms
|
|
Release Time
|
10 ms
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Contact Material
|
Silver Tin Oxide (AgSnO)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
384 Ohms
|
|
Base Product Number
|
J115F11
|
