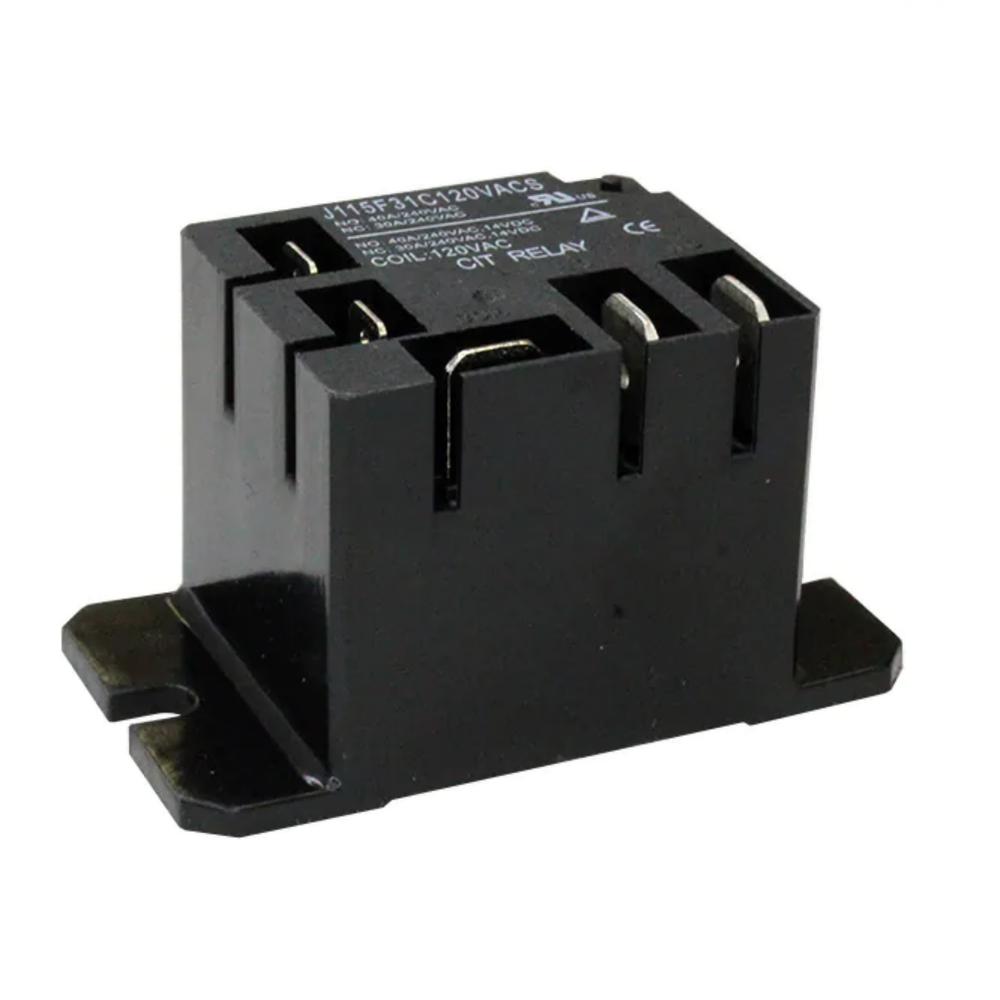

RELAY GEN PURPOSE SPDT 40A 120V
Web N°: 25-2494
$12.95
RELAY GEN PURPOSE SPDT 40A 120V
Web N°: 25-2494
$12.95
Description
|
Part number
|
J115F31C120VACS
|
|
Mounting Type
|
Chassis Mount
|
|
Coil Voltage
|
120VAC
|
|
Contact Form
|
SPDT (1 Form C)
|
|
Contact Rating (Current)
|
40 A
|
|
Switching Voltage
|
277VAC, 110VDC - Max
|
|
Coil Current
|
39.5 mA
|
|
Coil Type
|
Non Latching
|
|
Features
|
-
|
|
Termination Style
|
Quick Connect - 0.187"/0.250"
|
|
Seal Rating
|
Sealed - Fully
|
|
Coil Insulation
|
Class F
|
|
Must Operate Voltage
|
90 VAC
|
|
Must Release Voltage
|
36 VAC
|
|
Operate Time
|
15 ms
|
|
Release Time
|
10 ms
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Contact Material
|
Silver Tin Oxide (AgSnO)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
3.04 kOhms
|
