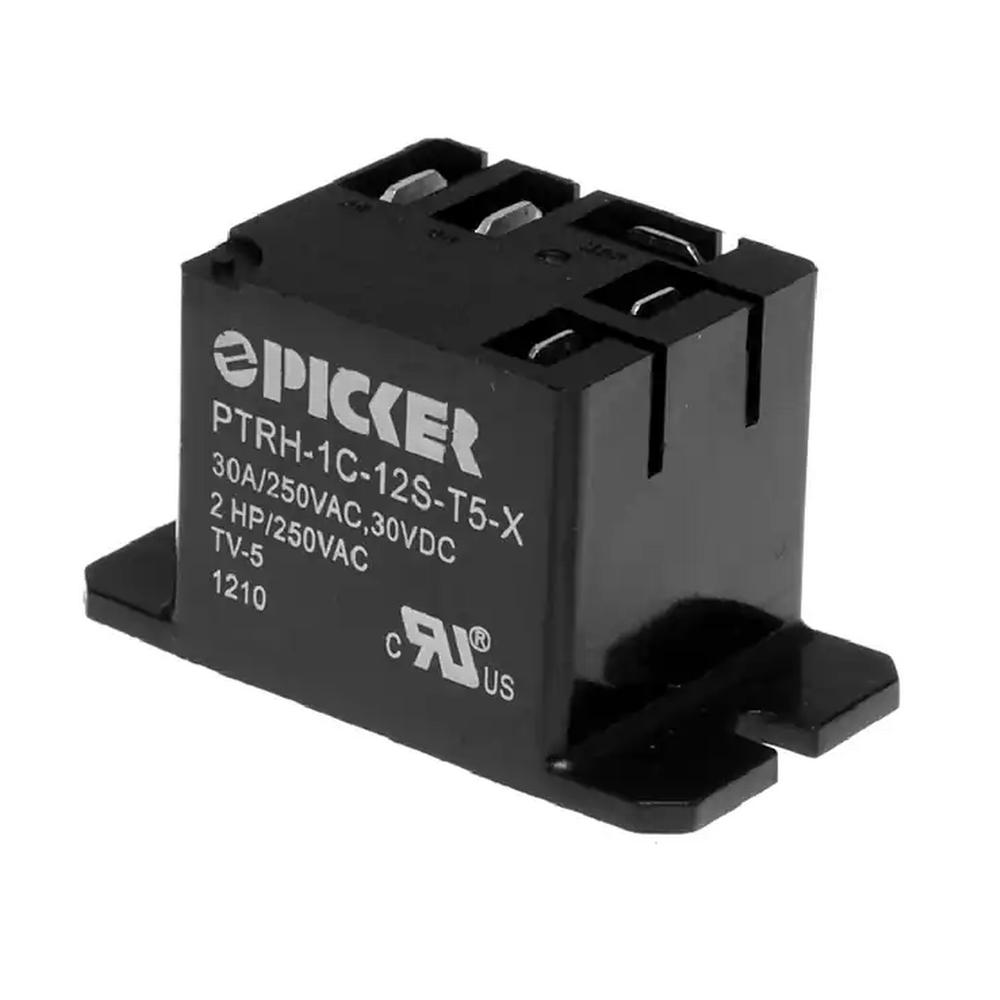

RELAY GENERAL PURPOSE SPDT 30A 12V
Web N°: 25-9484
$9.95
RELAY GENERAL PURPOSE SPDT 30A 12V
Web N°: 25-9484
$9.95
Description
|
Coil Voltage
|
12VDC
|
|
Contact Form
|
SPDT (1 Form C)
|
|
Contact Rating (Current)
|
30 A
|
|
Switching Voltage
|
300VAC, 110VDC - Max
|
|
Coil Current
|
80 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
Quick Connect - Multiple Sizes
|
|
Seal Rating
|
Sealed - Fully
|
|
Coil Insulation
|
Class B
|
|
Must Operate Voltage
|
9 VDC
|
|
Must Release Voltage
|
1.2 VDC
|
|
Operate Time
|
15 ms
|
|
Release Time
|
10 ms
|
|
Operating Temperature
|
-55°C ~ 100°C
|
|
Contact Material
|
Silver Cadmium Oxide (AgCdO)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
150 Ohms
|
Details and Specifications
PTRH-1C-12S-T5-X
