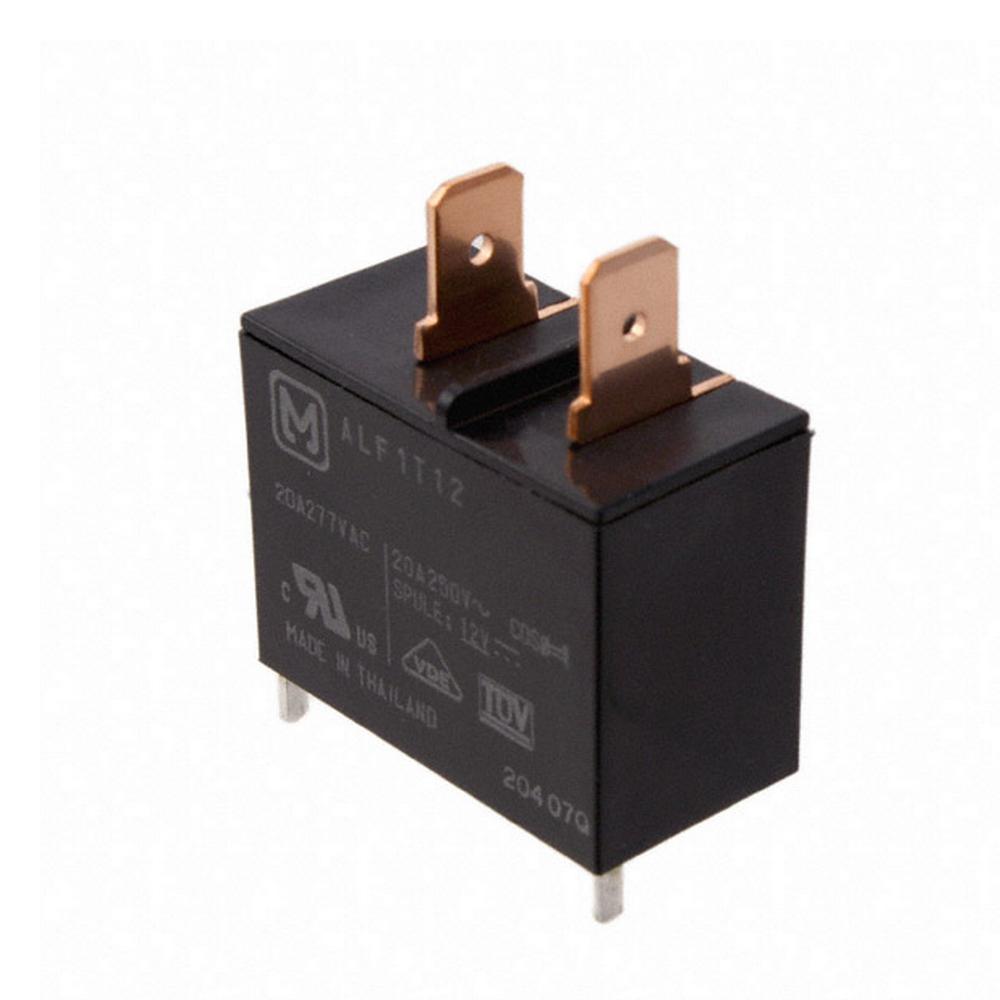

Mfr
|
Panasonic Electric Works
|
|
Series
|
ALF
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
12VDC
|
|
Contact Form
|
SPST-NO (1 Form A)
|
|
Contact Rating (Current)
|
20 A
|
|
Switching Voltage
|
250VAC - Max
|
|
Coil Current
|
75 mA
|
|
Coil Type
|
Non Latching
|
|
Termination Style
|
PC Pin, Quick Connect - 0.250" (6.3mm)
|
|
Must Operate Voltage
|
8.4 VDC
|
|
Must Release Voltage
|
1.2 VDC
|
|
Operate Time
|
20 ms
|
|
Release Time
|
15 ms
|
|
Operating Temperature
|
-40°C ~ 60°C
|
|
Contact Material
|
Silver Tin Oxide (AgSnO)
|
|
Relay Type
|
General Purpose
|
|
Coil Resistance
|
160 Ohms
|
|
Base Product Number
|
ALF1T1
|
