12V 1W 6A Relay Module
Web N°: 25-0922
$14.95
12V 1W 6A Relay Module
Out of stock

12V 1W 6A Relay Module

Web N°: 25-0922
$14.95

This product is out of stock.


Description

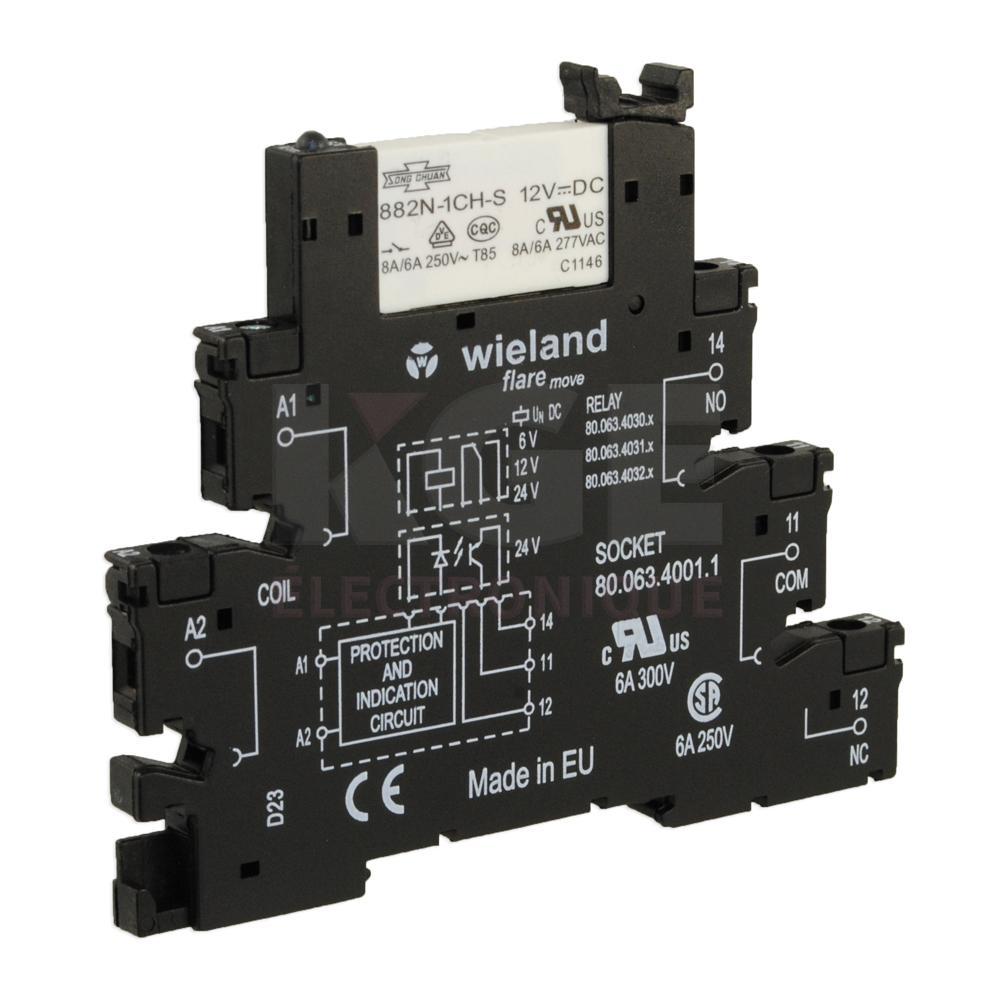

Standard relay module flare MOVE 12V-1W-6A, width 6,2 mm, plugable, nominal operating voltage 12V DC, 1 change-over contact 250V AC / 6A, AgSnO2.

Details and Specifications

  • Connection type: Screw connection.
  • Number of change-over contacts: 1.
  • Drive, polarization: Polarity free.
  • Drive, function: Mono stable.
  • Complete with socket: Yes.
  • Degree of protection (IP): IP20.
  • Nominal voltage: DC 12 V.
  • Lower nominal voltage DC: 9 V.
  • Upper nominal voltage DC: 14.4 V.
  • Depth: 76 mm.
  • Width: 6.2 mm.
  • Height: 88 mm.
