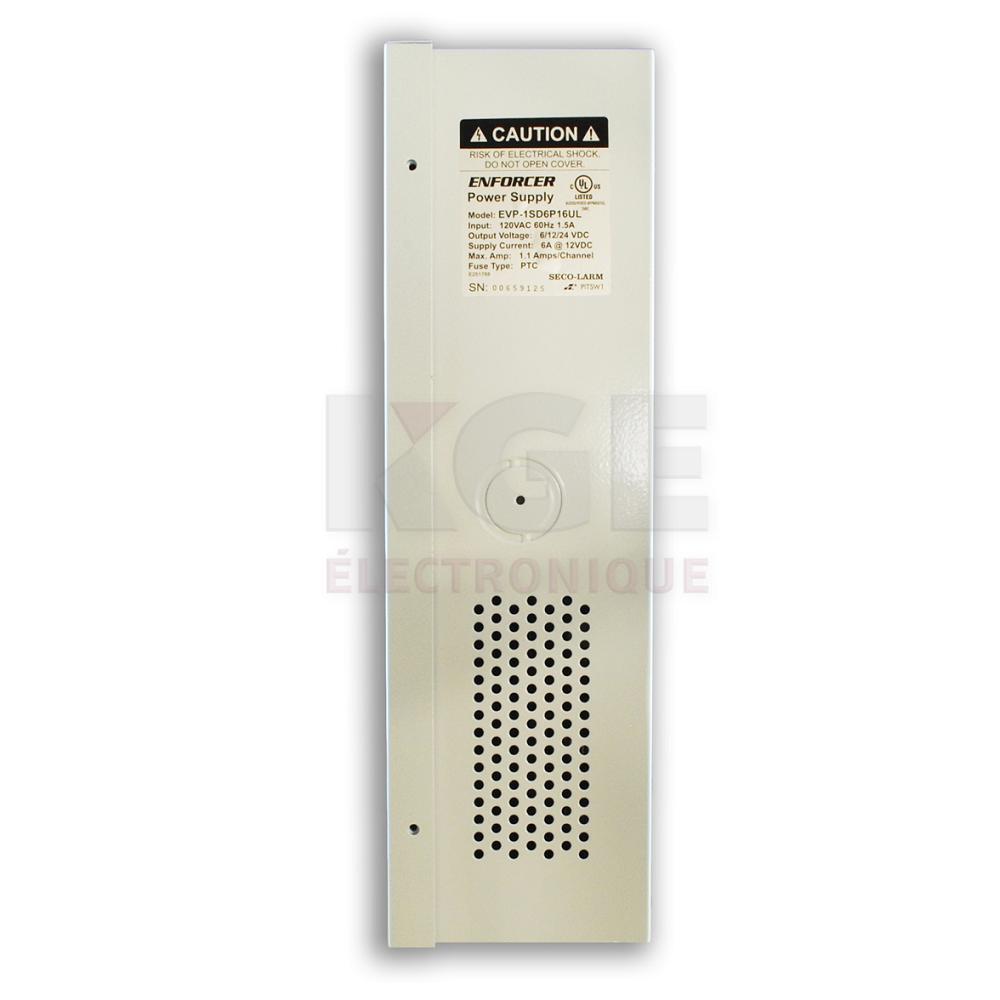

16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
Web N°: 23-0120
$199.95
$109.95 Save $90.00
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
Clearance
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras
16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras

16 Outputs 12VDC 6A DC Power Supply for CCTV Cameras

Web N°: 23-0120
$199.95
$109.95 Save $90.00

Quantity available : 1

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Output voltage adjustable with potentiometer to compensate for voltage drop (12.0~15.1VDC).
  • Each output individually fused (PTC-type fuses).
  • Output fuses rated 1.1 Amps @ 250VAC.
  • Individual red status indicator LED for each output.
  • Main power switch to turn on/off power to outputs.
  • 110VAC, 60Hz. UL-approved power transformer.
  • Max total continuous output current: 6A Main fuse rated 5.0 Amps @ 250VAC.
  • Spare fuse included.
  • 6-foot power cord included.

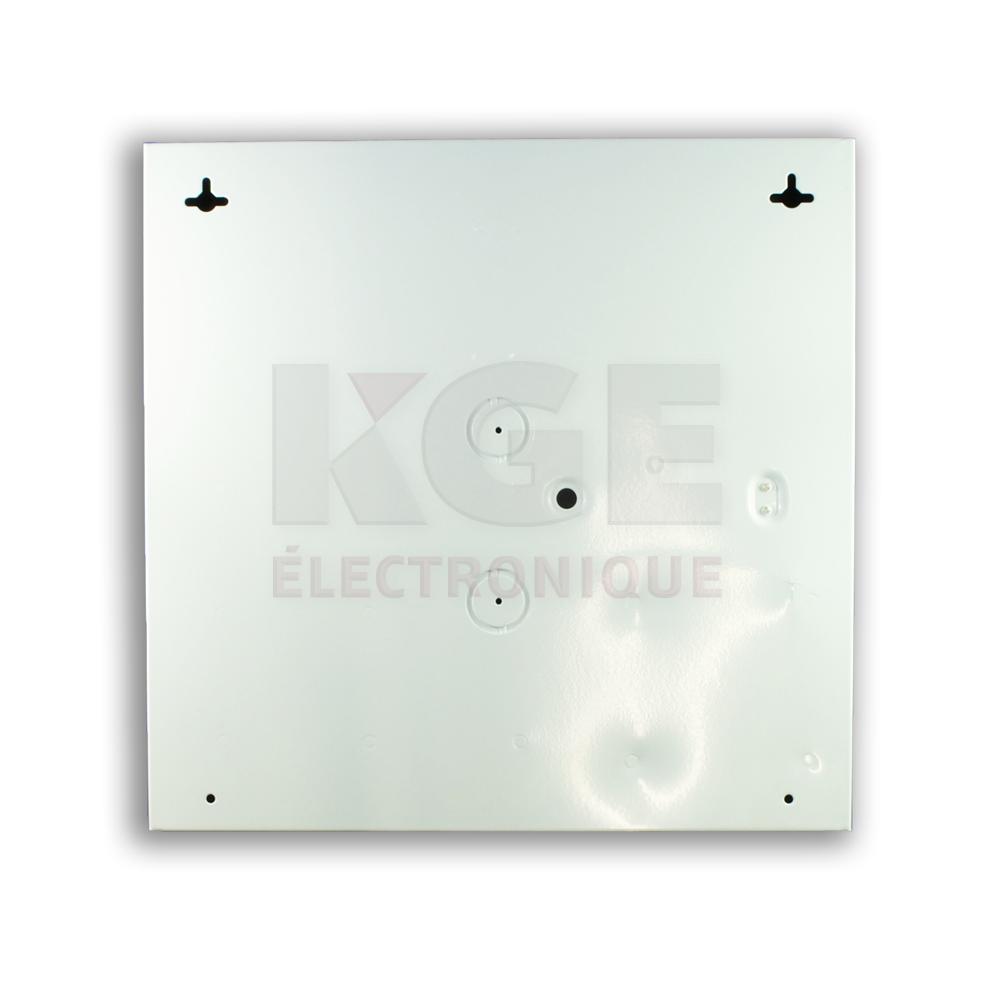

  • Heavy-duty steel case to protect the power connections.

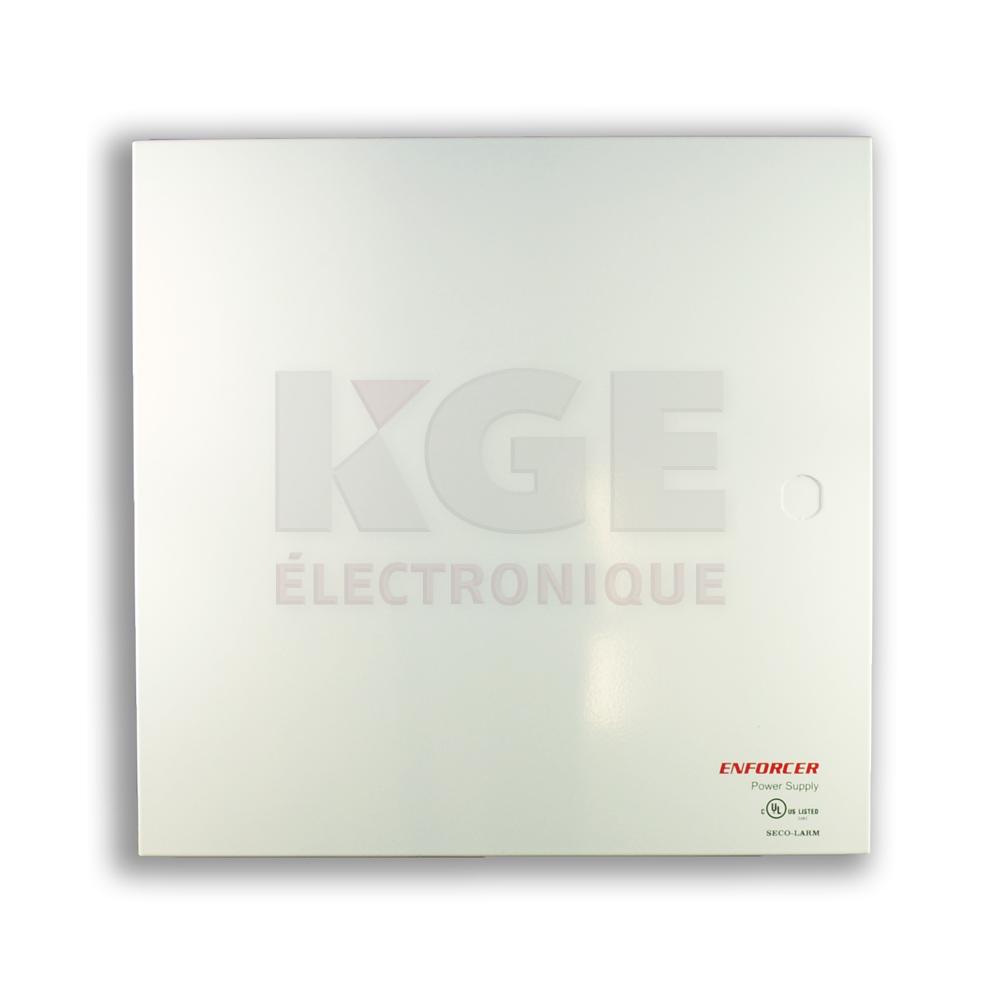

  • Removable steel cover for easy access to power connections.
  • Ventilation holes to prevent heat build-up.
  • Dimensions: 12" x 12" x 3-1/2" Knock-out on the cover for optional cam lock.
  • AC terminal block for easy connection from transformer to 6-foot power cord.
  • Output Fuse Rating: 1.1 Amps @ 250VAC
Download the document (PDF)
