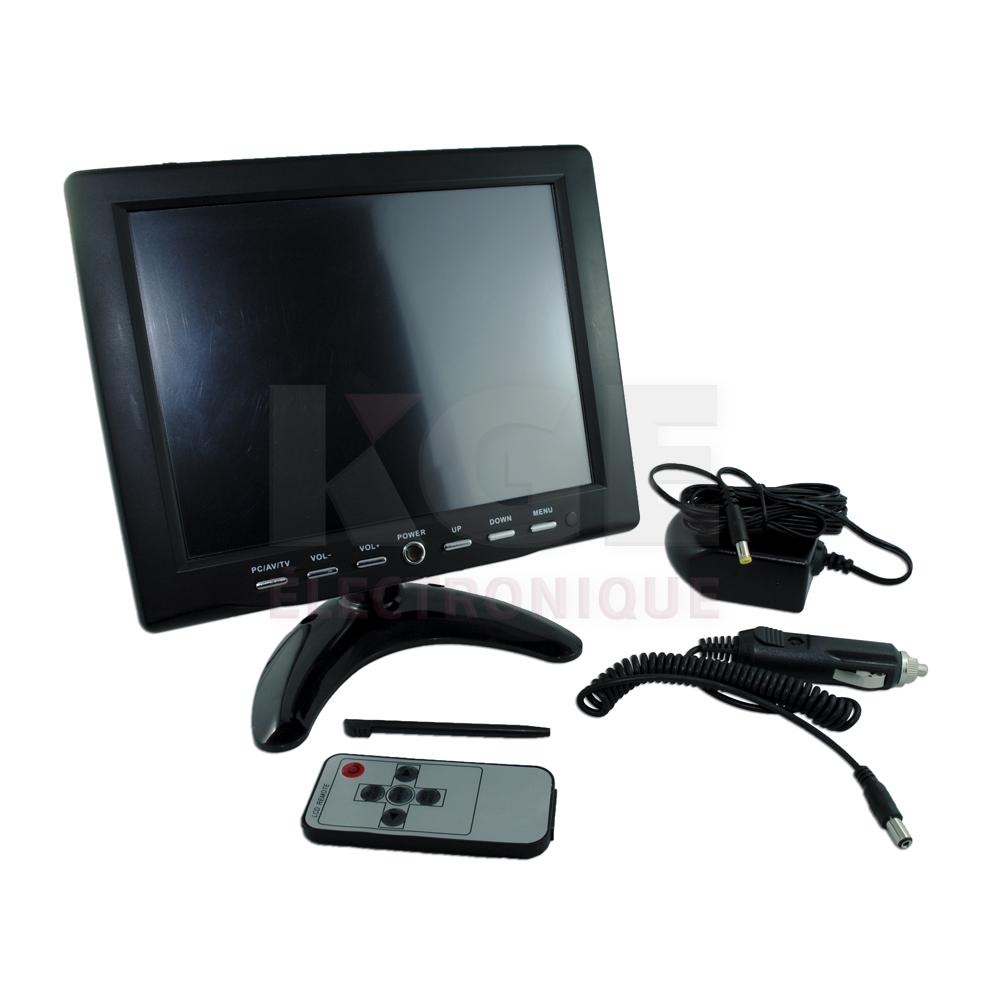

ACL touch screen monitor 8"
Web N°: 23-0003
$79.95 Save $100.00
Clearance
ACL touch screen monitor 8"
Web N°: 23-0003
$79.95 Save $100.00
$79.95 Save $100.00
$79.95 Save $100.00
$79.95 Save $100.00
$79.95 Save $100.00
Description
- Four wires resistive touch-screen interface (USB port)
- Standard VGA input (15 pin D-SUB) can match with PC, GPS and security systems
- Two RCA video input can match with VCD, DVD and camera
- RGB input for navigation display (optional)
- Touch-screen for PC display (optional)
- Built-in speaker/amplifier and earphone jack
- PC operation system: DOS/Windows 9X ME, 2K XP, Vista NT Windows CE / Linux / Mac
Details and Specifications
- Model No.: JY-T808
- Description: 8 inches TFT Touch Monitor
- Case/Bezel colour: Black
- Touchmonitor performance: Standard
- Display type: 4:3 ratio 8Active Matrix TFT LCD
- Active display area: 162(W) x 121.5(H) mm
- Native resolution: 800 x 600 @ 60Hz 1024x768 @ 75Hz
- Synchronization range: 30-80KHz horizontal, 55-75Hz vertical
- Pixel pitch: 0.0675(W) x 0.2025 (H) mm
- Pixel response time rise + fall (typically): 12ms
- Plug and play: VESA DDC 1/2B
- On screen display (OSD): Remote OSD
- Colours: 16.7 million
- Brightness: 350 CD/m2
- Contrast ratio typically: 400:1
- Viewing angle horizontal (left/right): 170° (85°/85°)
- (from centre, CR=5) vertical (up/down): 160° (70°/90°)
- Backlight lamp life Hrs to 1/2 brightness: 50,000
- Input video format: Analog RGB, NTSC/PAL/SCAME(auto)
- Touchscreen interface: Serial (RS232) or USB
- Touch response time serial/USB: 10.4ms
- Touch sensitivity: Fixed
- Power supply: External: 85-265 VAC, 50-60Hz
- Power consumption: 10W
- Temperature range: operating 0°C to 50°C
- Storage: -20°C to 80°C
- Relative humidity non condensing: Operating: 10%-90%, storage 5%-90%
- Packing
- Monitor dimensions: 20.5 x 16.2 x 3cm
- Weight (approximately) Monitor/shipping: 1.5kg
