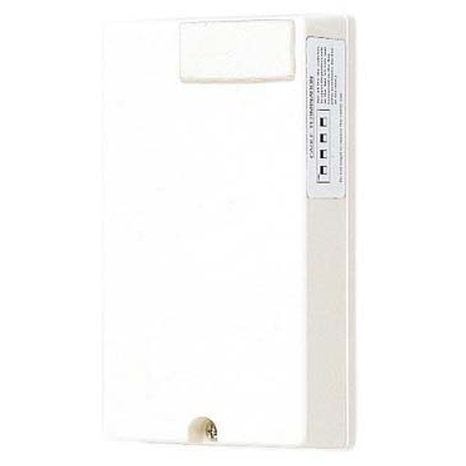

Aiphone Door Release Adapter RY-3DL
Web N°: 34-0028
$99.95
Aiphone Door Release Adapter RY-3DL
Web N°: 34-0028
$99.95
Description
Features
- Selective door release with one button
- Door release contacts release the door where communication is established
- Normally open (N/O) contacts for electric strike
- Normally closed (N/C) contacts for magnetic locks
Specifications
- Power Source 12~24V DC, 30mA, 12~16V AC, 60mA
- Use PS-2420UL or PS-1820UL
Relay Contact Rating
- N/O or N/C output: 1A @ 50V AC, 1A @ 30V DC (for other types use matching relay)
- Distance Master to RY-3DL: 165’(22AWG) 330’(18AWG) RY-3DL to EL-10S: 165’(22AWG) 330’(18AWG
- Used for: JF, IE-2AD, KB, and MK-2MCD
