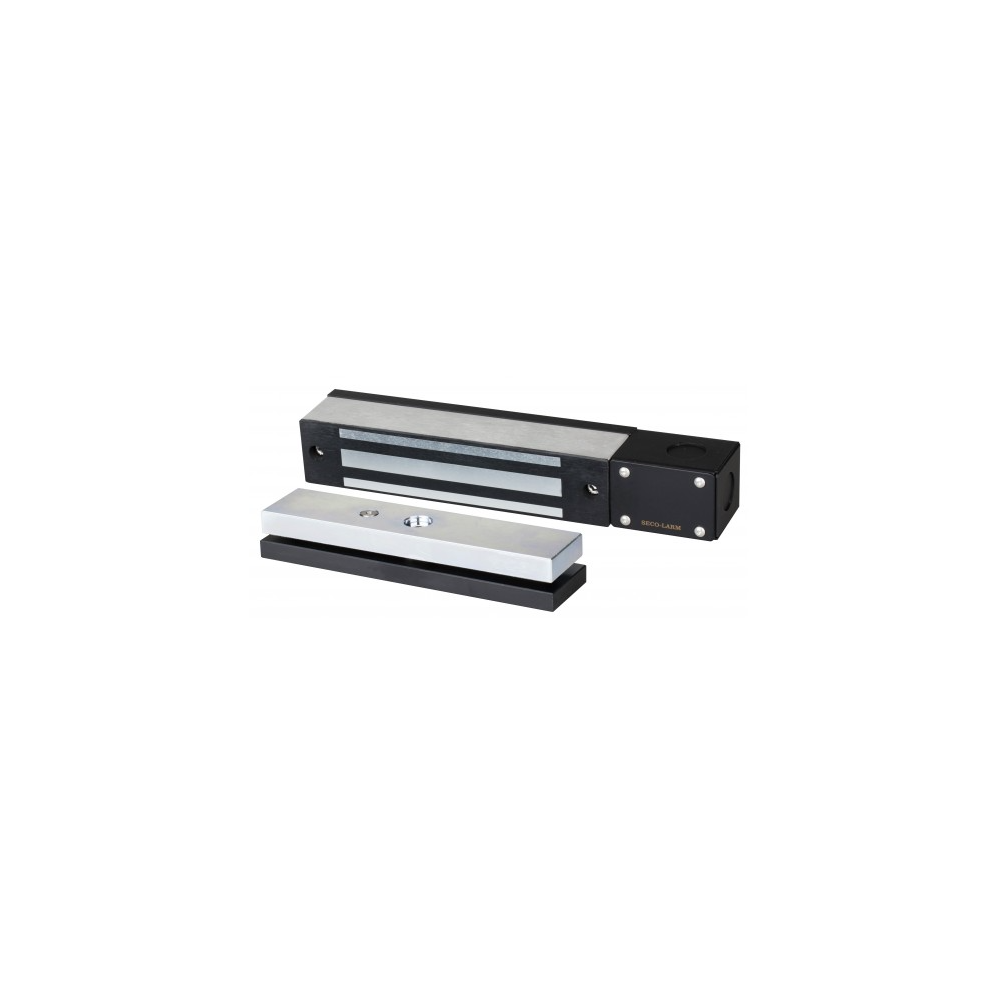

Electromagnetic Gate Lock, 600-lb Holding Force, Face Mount, Weldable
SECO-LARM
Web N°: 14-0492
$299.95
Electromagnetic Gate Lock, 600-lb Holding Force, Face Mount, Weldable
On order only

Electromagnetic Gate Lock, 600-lb Holding Force, Face Mount, Weldable

SECO-LARM
Web N°: 14-0492
$299.95

On order only (allow a delay of 1 to 2 weeks)


Quantity available : 1

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • For most types of outdoor sliding and swinging electric gates
  • Includes a magnetic lock with brackets for armature and magnet
  • Can be welded or bolted directly to gate
  • Brackets are zinc-plated for corrosion resistance
  • Black finish to match most gates
  • Water-and vandal-resistant attractive stainless-steel finish
  • Maintenance-free, factory-sealed design
  • Fail-safe operation (releases if power is removed)
  • Mount vertically or horizontally
  • Four knockouts on junction box
  • Adapter and mounting hardware included
  • Face mount

Details and Specifications

  • Holding Force 600-lb (272kg)
  • Operating Voltage 12VDC or 24VDC
  • Current Draw 500mA@12VDC, 250mA@24VDC
  • Operating Temperature 14º~131º F (-10º~55º C)
  • Certification RoHS, cUL, UL, CE
  • Weight 10.40-lb (4.75kg)
  • Maglock & Armature Weight (Approx.) 6.4-lb (2.9kg)
  • Bracket Weight (Approx.) 3.95-lb (1.8kg)
  • Type Electromagnetic Gate Lock, 600-lb Holding Force, Face Mount, Weldable
