Industrial Wide-Gap Magnetic Contact Switches
SECO-LARM
Web N°: 14-0526
$24.95
SM-4601-LQ
Out of stock

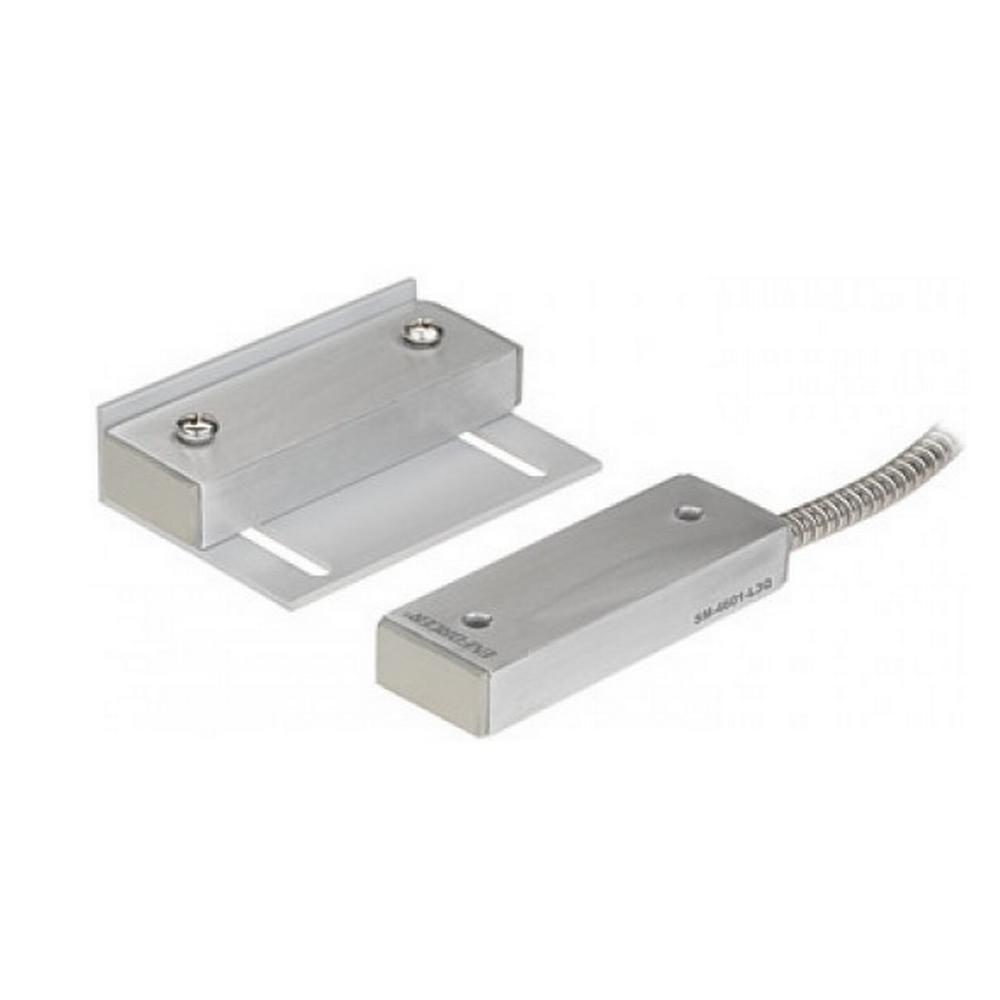

Industrial Wide-Gap Magnetic Contact Switches

SECO-LARM
Web N°: 14-0526
$24.95

This product is out of stock.


Description

  • Model Number: SM-4601-LQ
  • Useful for industrial situations where a wide-gap, surface mount contact is needed
  • Rugged aluminum housing
  • IP54 weather-resistant and sealed for outdoor use
  • Contact Type: SPST, iridium-plated to have a high melting point and Vickers hardness, for higher power handling and long life
  • Mounting bracket included
  • 36" (91cm) wire leads enclosed in armored cable
  • 3" (76mm) Gap

Details and Specifications

Loop Type N.C.
Operation Gap 3" (76mm)
Material - Case Aluminum
Material - Terminals 36" (91cm) armored leads
Contacts Iridium-plated
Contact Rating 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
Operating Temperature -15º~+160º F (-25º~70º C)
Switch Cycles 50 Million (0.1mA@5VDC)
Switch Dimensions 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
Magnet Dimensions 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
Magnet Type Rare-earth neodymium
IP Rating Weather-resistant IP54
Download the document (PDF)
