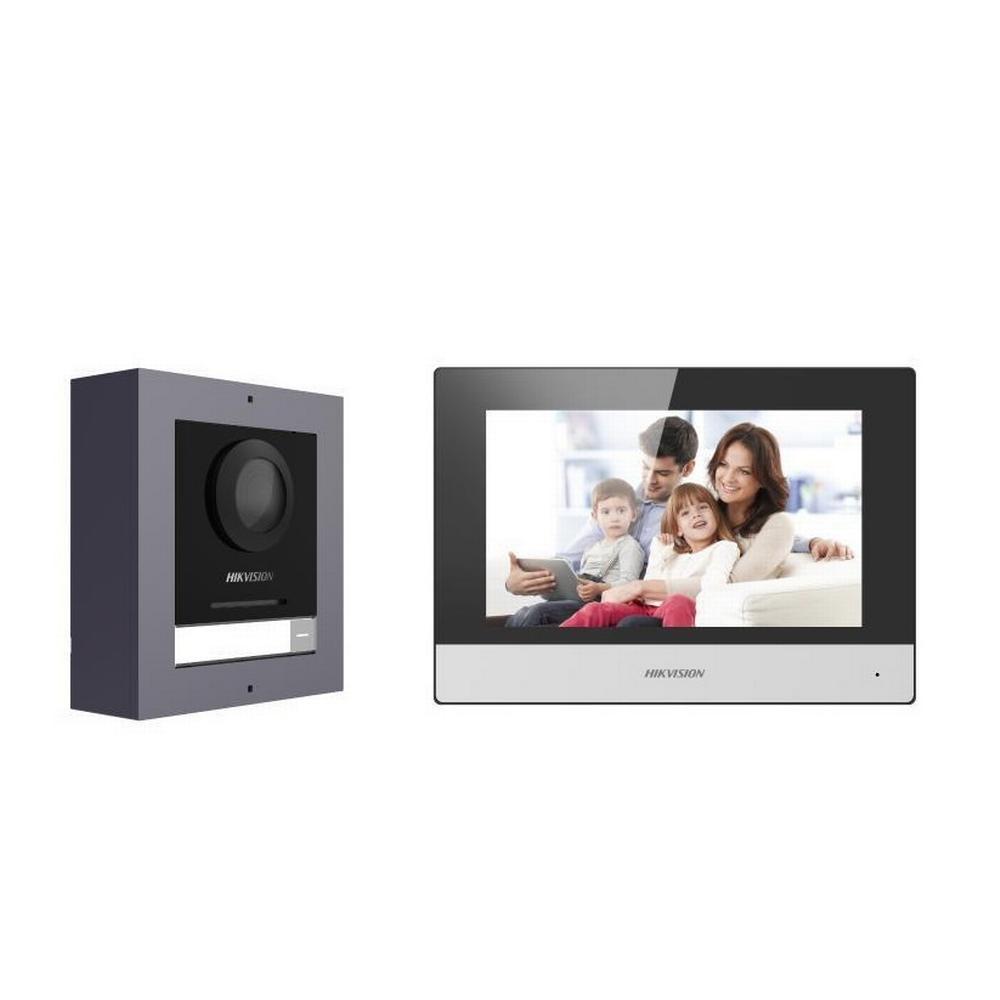

Hikvision DS-KIS602 2MP HD Modular IP Video Intercom

Description

• IP video intercom bundle for villa or house
• One call button for easier calls
• Stores messages and captured pictures in the TF card
• Convenient Hik-Connect APP Mobile Control
• Including: DS-KD8003-IME1(B)/Surface × 1, DS-KH6320-WTE1 × 1, 4-port standard PoE switch × 1, 16 GB TF card × 1
• Power adapter included in the package

Details and Specifications

• Door station/System parameters
• Operation systemEmbedded Linux operation system
• Flash32 MB
• RAM256 MB

• Door station/Video parameters
• Camera2MP HD camera
• Night visionLow illumination IR supplement mode:3 m
• Backlight compensationSupport
• Digital noise reductionSupport
• WDRSupport
• Field of viewHorizontal: 146°, Vertical: 82°
• Video Compression StandardH.264
• Motion detectionSupport

• Door station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U, G.711 A
• Audio compression Rate64 Kbps
• Audio intercomTwo-way audio communication

• Door station/Network parameters
• Network protocolTCP/IP, RSTP
• Wired network10/100 Mbps Ethernet

• Door station/Device interfaces
• Network interface1 RJ45
• RS-4851 (1 for Hikvision's sub module communication)
• Alarm input4 (2 exit butttons and 2 door contacts by default)
• Debugging port1
• Lock control2 (2 relay, max to 30 V, 2 A)
• TAMPER switch1
• Power interface12 VDC power output (max to 12 V, 500 mA)

• Door station/General
• Power consumption= 5 W
• Working temperature-40° C to 60° C (-40° F to 140° F)
• Working humidity10% to 95%
• Dimension

  Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94\" × 1.65\")

  Cover:117 × 107 × 4 mm (4.61 × 4.21\" ×0.16\")

  Installation Frame:117 × 107 × 32.7mm (4.61 × 4.21\" ×1.29\")"

• InstallationSurface mounting
• Protection levelIP65
• Indicator0
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

• Indoor station/System parameters
• Operation systemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor station/Display parameters
• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation methodCapacitive touch screen

• Indoor station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U, G.711 A
• Audio compression Rate64 Kbps

• Indoor station/Network parameters
• Wired network10/100 Mbps self-adaptive
• Wireless networkWi-Fi 802.11 b/g/n
• ProtocolTCP/IP, SIP, RTSP
• RS-4851 RJ-45 10/100 Mbps self-adaptive

• Indoor station/Device interfaces
• RS-4851
• Alarm input8-ch alarm inputs
• Relay output2
• TF cardMax to 32 G, SD 2.0 or lower version

• Indoor station/General
• Power consumption= 6 W
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90%
• Dimension (L x W x H)
