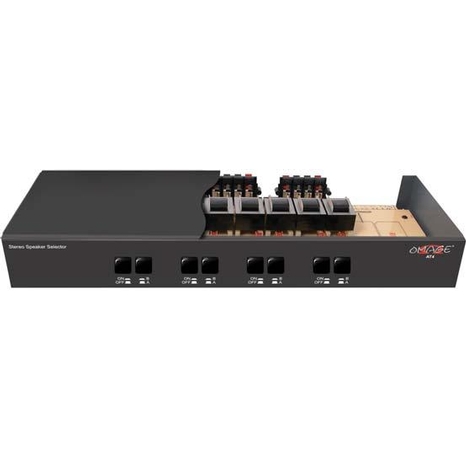

6 Pair Speaker Selector, Single Source
Web N°: 31-0177
$249.95
6 Pair Speaker Selector, Single Source
Web N°: 31-0177
$249.95
Description
- Allows you to switch up to six speaker pairs connected to a stereo amplifier. Offering high-quality audio performance, it also provides overload protection and long-term reliability.
- Offers two operating configurations: Impedance Matching and Bypass. Impedance-matching mode provides automatic overload protection for use even with high-power amplifiers. This mode allows multiple pairs of speakers to be safely connected to an amplifier using the built-in automatic impedance-matching circuitry. Bypass mode is used for direct speaker switching with remote impedance-matching volume controls. This allows local control in each room as well as higher efficiency; however, in this mode the impedance matching and overload protection are not engaged.
- Designed for use with 8-ohm loudspeakers, it also provides safe connection to bridged amplifiers and even works in applications where there is a floating ground. It has spring-loaded speaker terminals for quick connection and can accommodate speaker wire up to 12 gauge.
Details and Specifications
- Dimensions: 10.0" (W) x 2.5" (H) x 15.0" (D) (25.4 x 6.4 x 38.1 cm)
- Weight: 3.5 lbs (1.6 kg)
- Connector(s): Spring terminals
- Frequency Response: 20 Hz - 20 kHz +/- 0 dB
- Max Wire Size: 12 AWG (2.4 mm)
- Power Handling: 200 watts per channel peak, 70 watts per channel RMS
