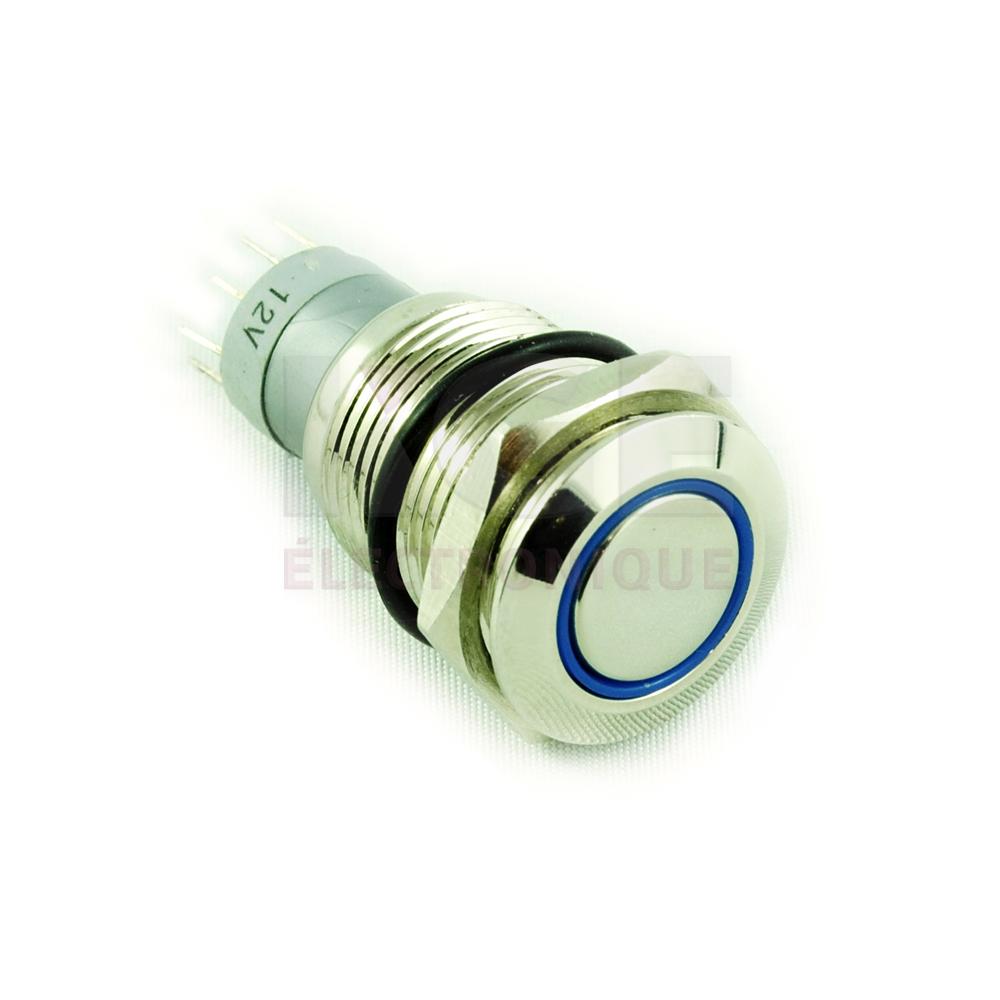

Blue Illuminated 12V ON/OFF Push Switch
Web N°: 25-0140
$29.95
Description
- Tamper proof push button switch.
- Mounts in 5/8” hole in panel up to 1/2” thick.
- IP67 protection against dust and water.
- LED illuminated ring around actuator (requires current limiting resistor).
Details and Specifications
- Contact Rating: 3A, 250VAC; 2A, 24VDC.
- Electrical Life: 50,000 cycles.
- Initial Contact Resistance: 50m Ohm max.
- Insulation Resistance: 500VDC 1000m Ohm min.
- Dielectric Strength: 2000V RMS 50~60Hz.
- Operating Temperature: -4°F ~ 158°F.
- Switching Circuit: On - On (latching).
- Torque: 5 ~ 14Nm max. applied to nut.
- Operating Force: 5.5N max.
- Type: SPDT.
- Action: Push On - Push Off.
- Actuator: Brass w/ Blue LED.
