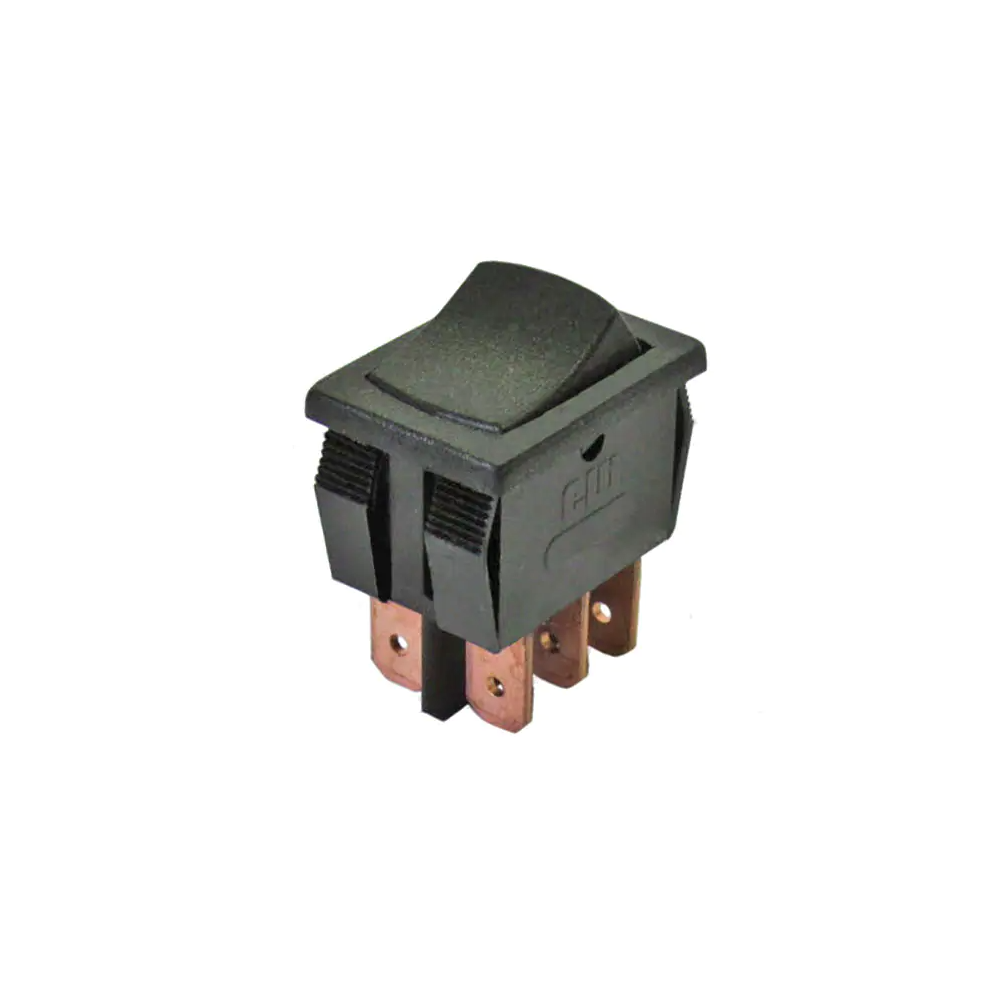

Rocker Switch On-On DPDT 13A 125V
Web N°: 25-2229
$4.95
Rocker Switch On-On DPDT 13A 125V
Web N°: 25-2229
$4.95
Description
- Mounting Type: Panel Mount, Snap-In
- Circuit: DPDT
- Switch Function: On-On
- Current Rating (Amps): 13A (AC)
- Actuator Type: Concave (Curved)
- Color - Actuator/Cap: Black
- Actuator Marking: No Marking
- Termination Style: Quick Connect - 0.187" (4.7mm)
- Features: Terminal Barriers
- Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
- Operating Temperature: -20°C ~ 105°C
- Mechanical Life: 25,000 Cycles
- Electrical Life: 25,000 Cycles
- Voltage Rating - AC: 125 V
